AEV250-M

Active

Altran Magnetics, LLC

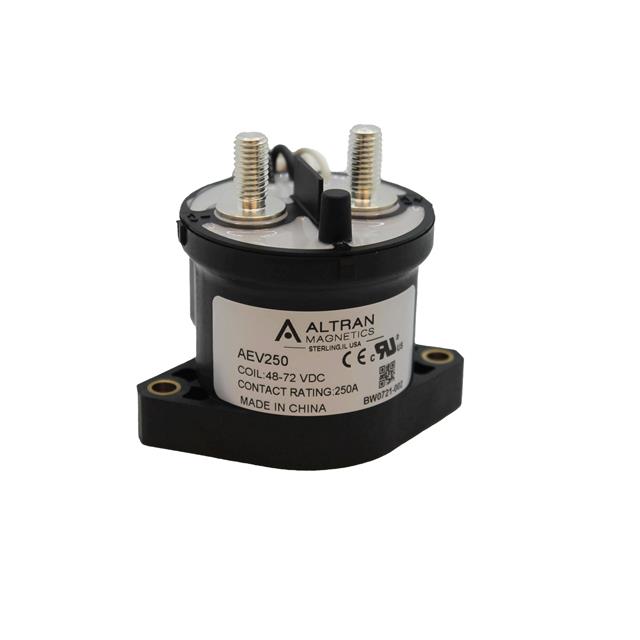

DC CONTACTOR 500A 12-24VDC COIL

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

DC CONTACTOR 500A 12-24VDC COIL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AEV250-M	AEV250 Series

Coil Current	130 mA	130 mA
Coil Voltage [Max]	24 VDC	24 VDC
Coil Voltage [Min]	12 VDC	12 VDC
Contact Form	SPST-NO (DM) (1 Form X)	SPST-NO (DM) (1 Form X)
Contact Rating (Current)	500 A	500 A
Features	Sealed - Hermetically, Economizer	Economizer, Sealed - Hermetically, Auxiliary Contacts
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	9 VDC	9 VDC
Must Release Voltage	6 VDC	6 VDC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	12 ms	12 ms
Switching Voltage [Max]	1000 VDC	1000 VDC
Termination Style	Wire Leads, Stud	Wire Leads, Stud

DC CONTACTOR 500A 12-24VDC AUX

Part	Coil Voltage [Min]	Coil Voltage [Max]	Features	Switching Voltage [Max]	Contact Rating (Current)	Contact Form	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Termination Style	Must Operate Voltage	Must Release Voltage	Coil Current	Mounting Type
Altran Magnetics, LLC AEV250-MA	12 VDC	24 VDC	Auxiliary Contacts, Economizer, Sealed - Hermetically	1000 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	85 °C	-40 °C	12 ms	Stud, Wire Leads	9 VDC	6 VDC	130 mA	Chassis Mount
Altran Magnetics, LLC AEV250-M	12 VDC	24 VDC	Economizer, Sealed - Hermetically	1000 VDC	500 A	SPST-NO (DM) (1 Form X)	25 ms	85 °C	-40 °C	12 ms	Stud, Wire Leads	9 VDC	6 VDC	130 mA	Chassis Mount
