Description
General part information

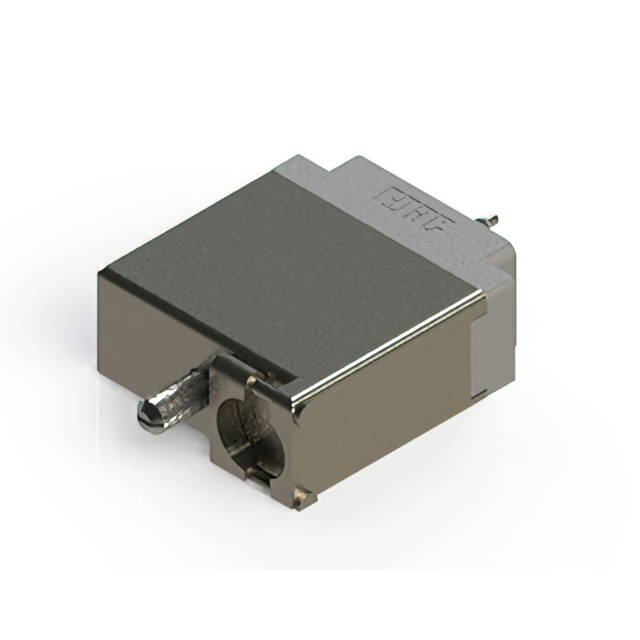

519-036-520-365
36 Connector Plug, Hermaphroditic Contacts Free Hanging (In-Line) Gray Rack and Panel
Technical Specifications
Parameters and characteristics for this part
| Specification | 519-036-520-365 |
|---|---|
| Color | Gray |
| Connector Style | Rack and Panel |
| Connector Type | Hermaphroditic Contacts, Plug |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Current Rating | 8.5 A |
| Features | Guide Pin, Jackscrew |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Columns | 9 |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.15 in |
| Termination | Solder |
