9431 060500

Active

Belden Inc.

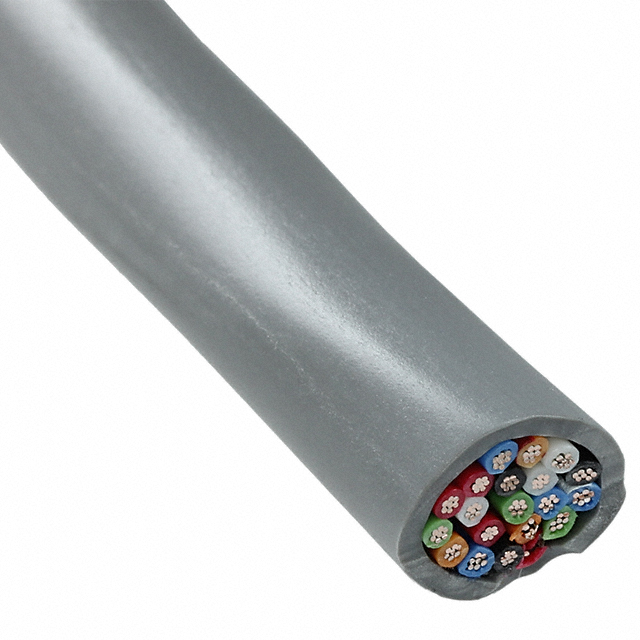

CABLE 20COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 20COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9431 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.345 "
Jacket (Insulation) Diameter [diameter]	8.76 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	20
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Wire Gauge	Number of Conductors	Conductor Insulation	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Ratings
Belden Inc. 9431 060500	22 AWG	20	Poly-Vinyl Chloride (PVC)	Chrome	-20 C	80 C	Copper Tinned	Multi-Conductor	Audio Control Instrumentation	0.04 in	1.016 mm	500 '	152.4 m	0.345 "	8.76 mm	Poly-Vinyl Chloride (PVC)	7	30 AWG	UL Style 2576

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Conductor Multi-Conductor Cable Chrome 22 AWG 500.0' (152.4m)
