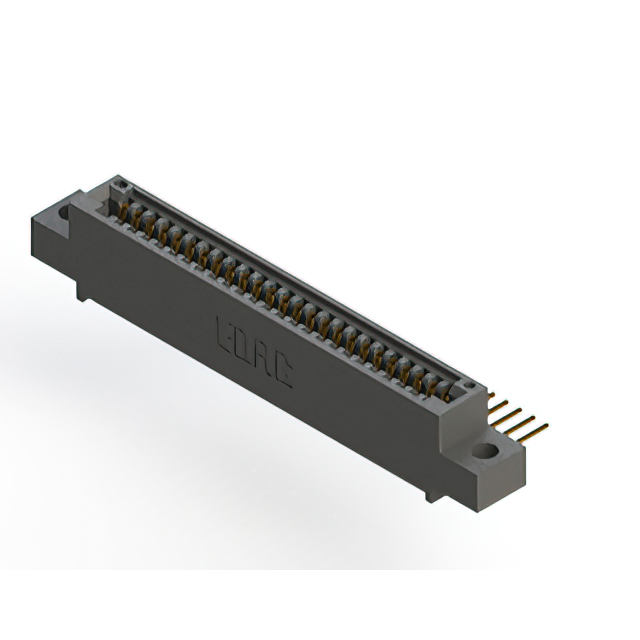

395-025-559-404
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-025-559-404
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-025-559-404 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-025 Series
...
| Part | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Termination Rows | Termination | Card Type | Mounting Type | Color | Number of Rows | Gender | Pitch [x] | Pitch [x] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Contact Type | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole Right Angle | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | |
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Wire Wrap | Non Specified - Single Edge | Through Hole | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | |||
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole Right Angle | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | Card Guides | ||
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole Right Angle | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | Card Guides | ||
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | Card Guides | ||
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | |
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Wire Wrap | Non Specified - Single Edge | Through Hole | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | Card Guides | ||
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole Right Angle | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | |
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole Right Angle | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | Card Guides | ||
EDAC Inc. | Single | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 1 | Solder | Non Specified - Single Edge | Through Hole | Black | 1 | Female | 2.54 mm | 0.1 in | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | 25 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-025 Series
25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
