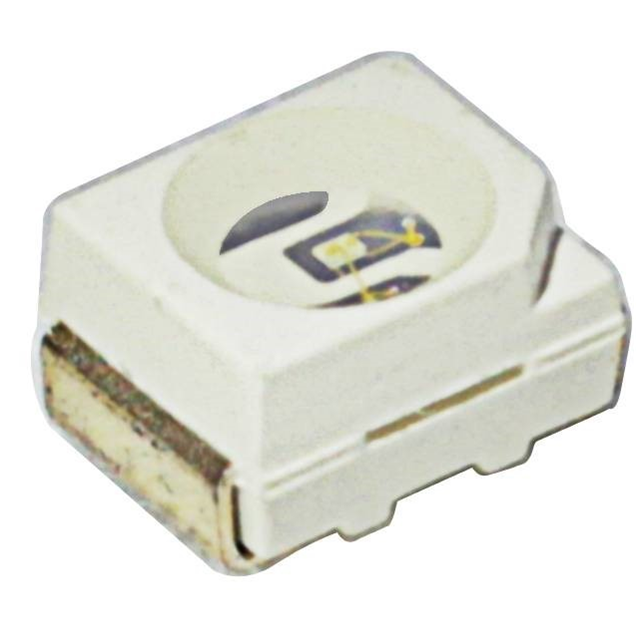

L955MPGC-TD
ActiveAmerican Opto Plus LED
LED GREEN CLEAR 2PLCC SMD
L955MPGC-TD
ActiveAmerican Opto Plus LED
LED GREEN CLEAR 2PLCC SMD
Description
General part information
L955MPGC-TD
Green 525nm LED Indication - Discrete 3.2V 2-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | L955MPGC-TD |
|---|---|
| Color | Green |
| Current - Test | 20 mA |
| Height (Max) | 1.92 mm |
| Lens Color | Colorless |
| Lens Diameter | 2.2 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1200 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Package Name | 2-PLCC |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 2.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 515 nm |
