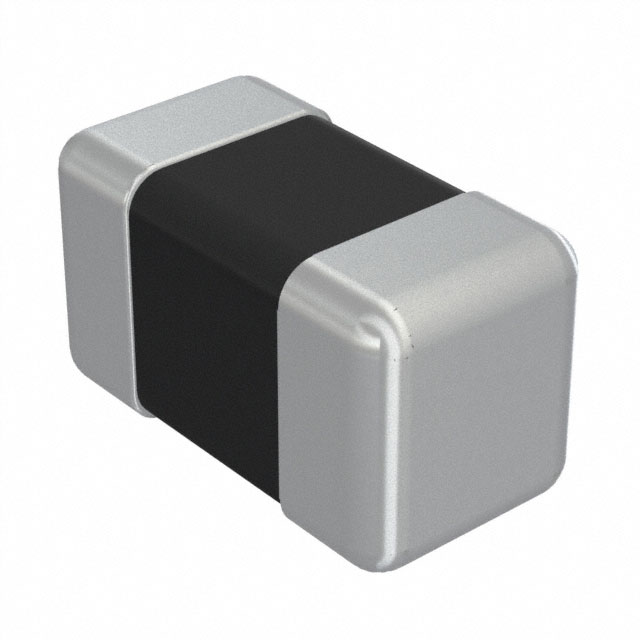

TMK021CG3R7BK5W
TAIYO YUDEN
CAP ,MLCC ,008004,25V ,C0G,3.70.1PF ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTMK021CG3R7BK-W Spec Sheet
TMK021CG3R7BK5W
TAIYO YUDEN
CAP ,MLCC ,008004,25V ,C0G,3.70.1PF ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTMK021CG3R7BK-W Spec Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMK021CG3R7BK5W |
|---|---|
| Applications | General Purpose |
| Capacitance | 3.7 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 008004 (0201 Metric) |
| Size / Dimension [x] | 0.01 inches |
| Size / Dimension [x] | 0.25 mm |
| Size / Dimension [y] | 0.005 in |
| Size / Dimension [y] | 0.13 mm |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.14 mm |
| Thickness (Max) [Max] | 0.006 in |
| Tolerance | 0.1 pF |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TMK021CG3R7BK5W
3.7 pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 008004 (0201 Metric)
