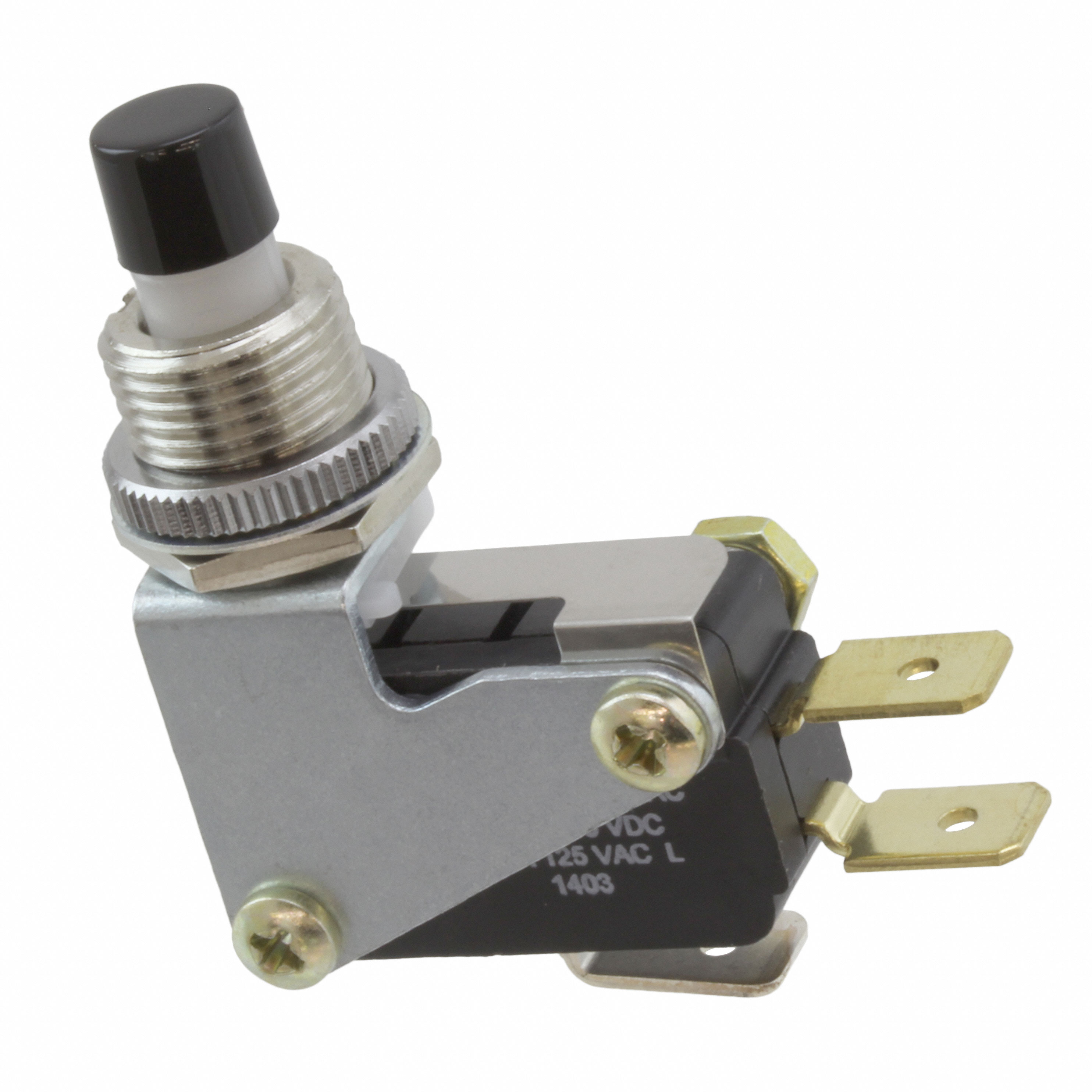

SCB15S15B-1A
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 15A 125V
SCB15S15B-1A
ObsoleteNKK Switches
SWITCH PUSHBUTTON SPDT 15A 125V
Description
General part information
SCB15S15B-1A
Pushbutton Switch SPDT Standard Panel Mount, Rear
Technical Specifications
Parameters and characteristics for this part
| Specification | SCB15S15B-1A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 15 A |
| Electrical Life (Cycles) | 50000 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Rear, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 12.5 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 125 V |
