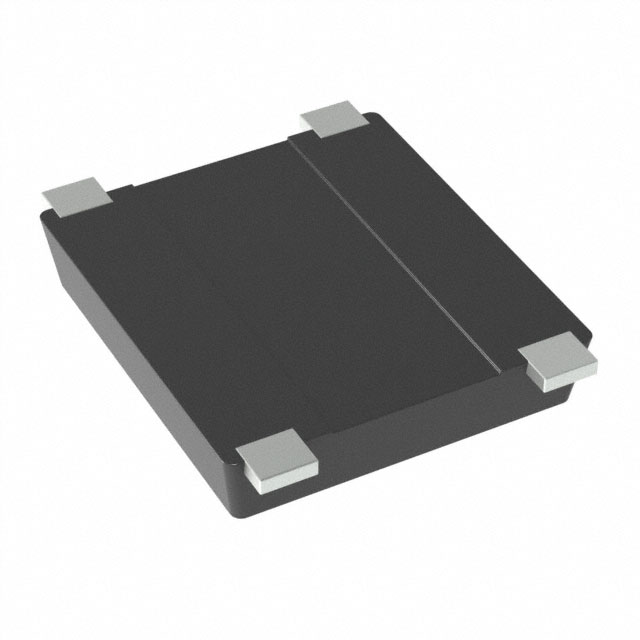

YBS3007G
UnknownTaiwan Semiconductor Corporation
3A, 1000V, STANDARD BRIDGE RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
YBS3007G
UnknownTaiwan Semiconductor Corporation
3A, 1000V, STANDARD BRIDGE RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YBS3007G |
|---|---|
| Current - Average Rectified (Io) | 3 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, Flat Leads |
| Supplier Device Package | YBS |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.27 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 9000 | $ 0.14 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
YBS3007G
Bridge Rectifier Single Phase Standard 1 kV Surface Mount YBS
