FMCA1718-150CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-SMAJACK 59.0
FMCA1718-150CM
ActiveFairview Microwave
CBL ASSY TYPE NJACK-SMAJACK 59.0
Description
General part information
FMCA1718-150CM

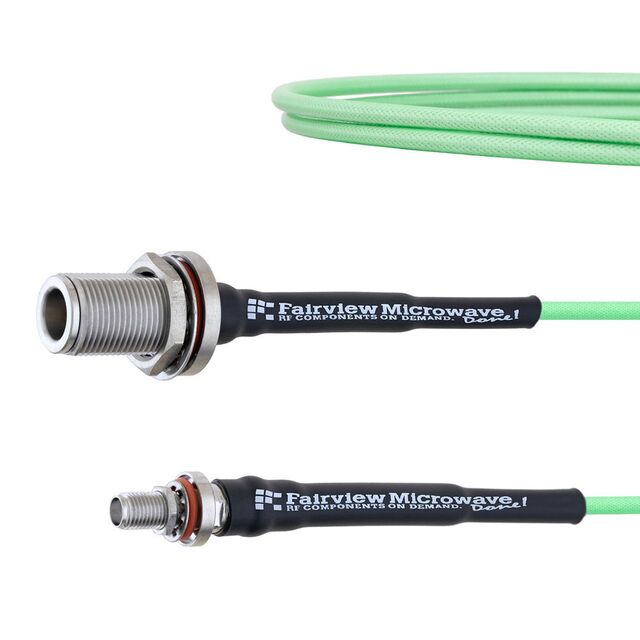

Cable Assembly Coaxial SMA to N-Type LL160 59.1" (1.5m) 4.9'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1718-150CM |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Color | Green |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 59.1 in |
| Length (ft) | 4.9 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
