776267-1

Active

TE Connectivity AMP Connectors

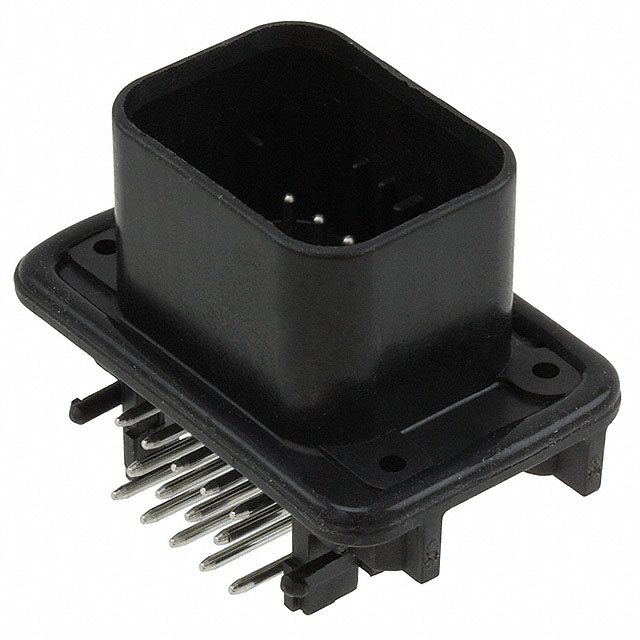

CONN HEADER R/A 14POS 4MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 14POS 4MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776267-1	776267 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide, Sealed	Board Guide, Sealed
Insulation Color	Black	Gray, Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER R/A 14POS 4MM

Part	Features	Connector Type	Contact Shape	Termination	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Shrouding	Contact Material	Style	Contact Type	Fastening Type	Voltage Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Rows	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Insulation Material	Mounting Type
TE Connectivity AMP Connectors 1-776267-4	Board Guide, Sealed	Header	Circular	Solder	All	Gold-Palladium	14	Shrouded - 4 Wall	Brass	Board to Cable/Wire	Male Pin	Locking Ramp	250 VAC	Varies by Wire Gauge	0.157 "	4 mm	3	Automotive, Industrial	125 °C	-40 °C	0.157 in	4 mm	Gray	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole
TE Connectivity AMP Connectors 776267-1	Board Guide, Sealed	Header	Circular	Solder	All		14	Shrouded - 4 Wall	Brass	Board to Cable/Wire	Male Pin	Locking Ramp	250 VAC	Varies by Wire Gauge	0.157 "	4 mm	3	Automotive, Industrial	105 ░C	-40 °C	0.157 in	4 mm	Black	Polybutylene Terephthalate (PBT), Glass Filled	Panel Mount, Right Angle, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Panel Mount, Through Hole, Right Angle 14 position 0.157" (4.00mm)
