Technical Specifications
Parameters and characteristics for this part
| Specification | D33V0S1U2LP1608-7 |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 156 pF |
| Current - Peak Pulse (10/1000µs) | 19 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

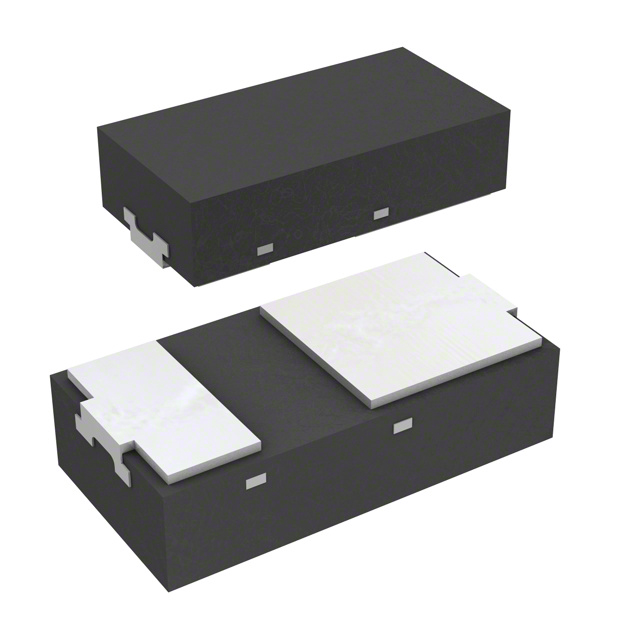

| Package / Case | 2-UFDFN |
| Power Line Protection | False |
| Supplier Device Package | U-DFN1608-2 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 36 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 55 V |
| Voltage - Reverse Standoff (Typ) | 33 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.33 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Tape & Reel (TR) | 10000 | $ 0.07 | ||
| 30000 | $ 0.07 | |||
| 50000 | $ 0.06 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.29 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
Description
General part information
D33V0S1U2LP1610 Series
The DxxV0S1U2LP1610 series are designed to protect sensitive electronic equipment from damage caused by EOS, lightning strikes, and ESD. These devices provide the features required for board-level protection. Their high surge current capability and low clamping voltage make them ideal for use in harsh transient environments.
