74ACT573B
ActiveSTMicroelectronics

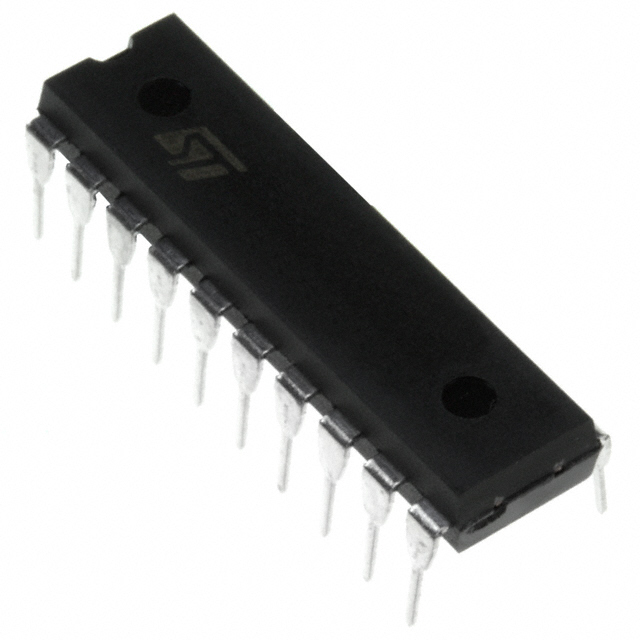

IC D-TYPE TRANSP SGL 8:8 20DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74ACT573B
ActiveSTMicroelectronics
IC D-TYPE TRANSP SGL 8:8 20DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74ACT573B | 74ACT573 Series |
|---|---|---|
| Circuit [custom] | 8 | 8 |
| Circuit [custom] | 8 | 8 |
| Current - Output High, Low | 24 mA | 24 mA |
| Delay Time - Propagation | 5 ns | 5 ns |
| Independent Circuits | 1 | 1 |
| Logic Type | D-Type Transparent Latch | D-Type Transparent Latch |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Output Type | Tri-State | Tri-State |
| Package / Case | 20-DIP | 20-DIP, 20-TSSOP |
| Package / Case | 7.62 mm | 7.62 mm |
| Package / Case | 0.3 in | 0.3 in |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Supplier Device Package | 20-DIP | 20-DIP, 20-TSSOP |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
74ACT573 Series
IC D-TYPE TRANSP SGL 8:8 20DIP
| Part | Circuit [custom] | Circuit [custom] | Independent Circuits | Package / Case | Package / Case | Package / Case | Mounting Type | Output Type | Logic Type | Supplier Device Package | Delay Time - Propagation | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output High, Low | Package / Case [y] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics 74ACT573B | 8 | 8 | 1 | 20-DIP | 7.62 mm | 0.3 in | Through Hole | Tri-State | D-Type Transparent Latch | 20-DIP | 5 ns | 4.5 V | 5.5 V | -55 °C | 125 °C | 24 mA | ||
STMicroelectronics 74ACT573TTR | 8 | 8 | 1 | 20-TSSOP | Surface Mount | Tri-State | D-Type Transparent Latch | 20-TSSOP | 5 ns | 4.5 V | 5.5 V | -55 °C | 125 °C | 24 mA | 4.4 mm | 0.173 in |
Description
General part information
74ACT573 Series
D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-DIP
Documents
Technical documentation and resources
