Description
General part information

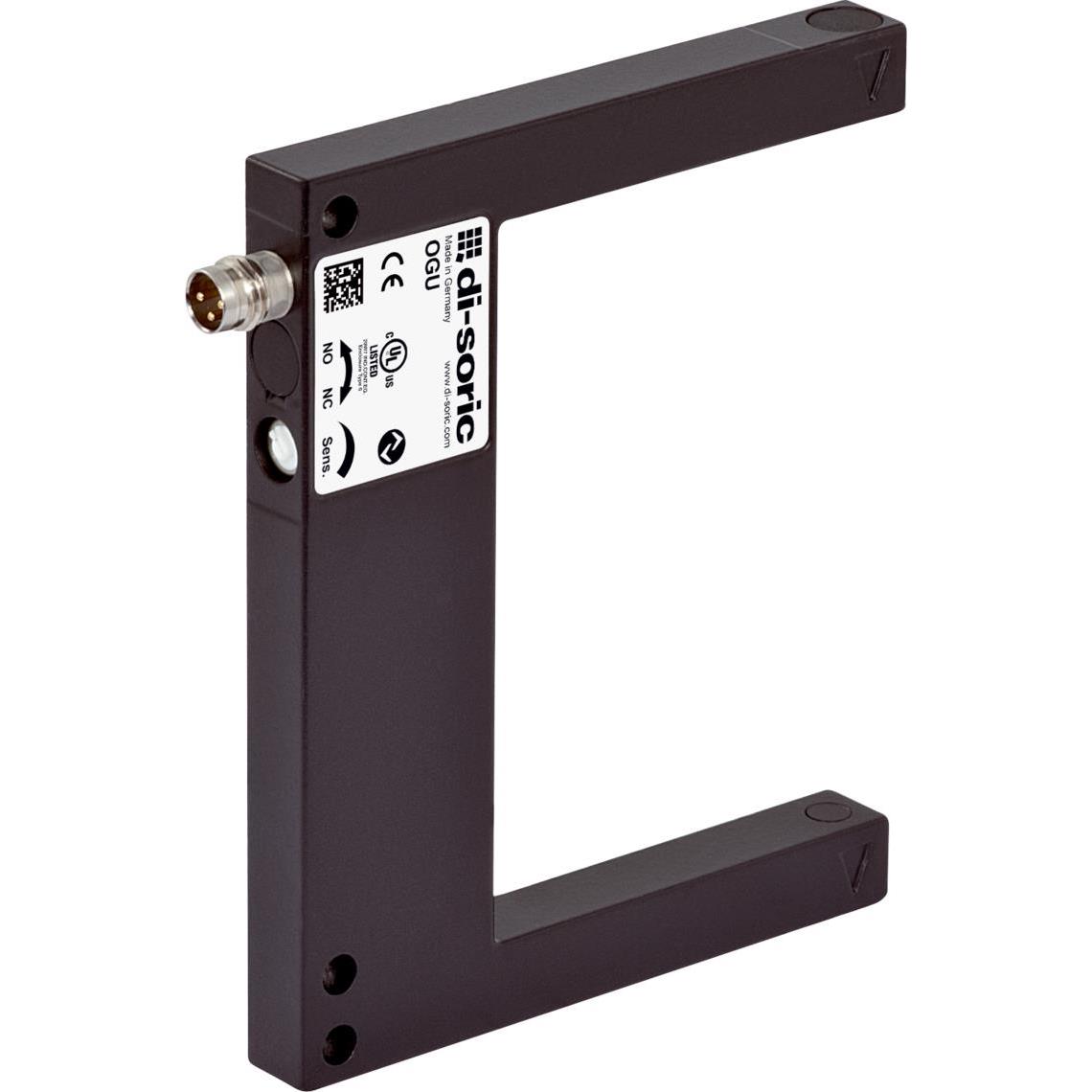

210249
Optical Optical Sensor Push-Pull, NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | 210249 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Infrared |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NC, Push-Pull, NO |
| Sensing Method | Optical |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
