114-83-210-41-117101

Active

Preci-Dip

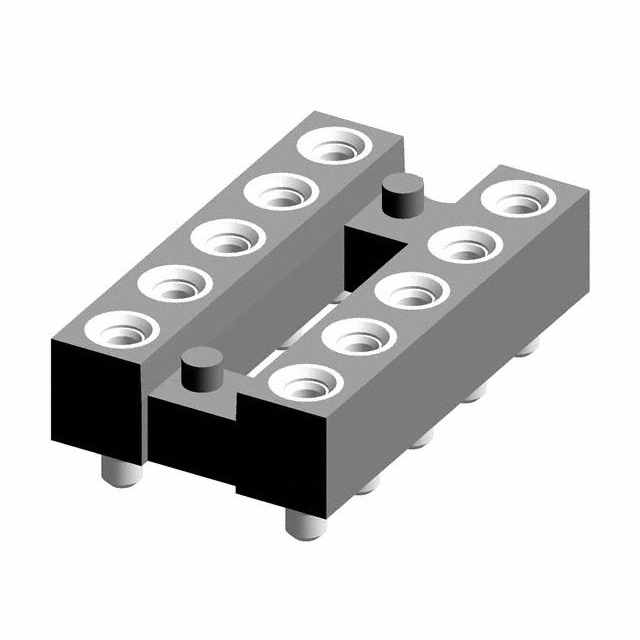

CONN IC DIP SOCKET 10POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

114-83-210-41-117101

Active

Preci-Dip

CONN IC DIP SOCKET 10POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	114-83-210-41-117101	114-83 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	29.5 Áin	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám	0.75 Ám
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions or Pins (Grid)	-	14 - 48
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	6
Number of Positions or Pins (Grid)	-	3 - 20
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid) [custom]	2 x 5	2 x 16, 2 x 5
Number of Positions or Pins (Grid) [custom]	10	10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	1.2 mm	1.2 mm
Termination Post Length [x]	0.047 in	0.047 in
Type	DIP	DIP
Type	5.08 mm	5.08 - 15.24 mm
Type	0.2 in	0.2 - 0.6 "

114-83 Series

CONN IC DIP SOCKET 24POS GOLD

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Contact Finish - Post	Mounting Type	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length [x]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Termination	Features	Contact Finish - Mating	Material Flammability Rating	Contact Material - Mating	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Number of Positions or Pins (Grid)	Type	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 114-83-324-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	24	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-306-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.3 "	7.62 mm	DIP	2	6	3
Preci-Dip 114-83-632-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.6 in	15.24 mm	DIP				2 x 16	32
Preci-Dip 114-83-210-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.2 in	5.08 mm	DIP				2 x 5		10
Preci-Dip 114-83-310-41-134191	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.3 "	7.62 mm	DIP				2 x 5		10
Preci-Dip 114-83-316-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	16	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-624-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	24	0.6 in	15.24 mm	DIP
Preci-Dip 114-83-328-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	28	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-320-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	20	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-640-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	40	0.6 in	15.24 mm	DIP	2		20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4920	$ 0.68

Description

General part information

114-83 Series

10 (2 x 5) Pos DIP, 0.2" (5.08mm) Row Spacing Socket Gold Surface Mount
