FMHR0204-30
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 30
FMHR0204-30
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 30
Description
General part information
FMHR0204-30

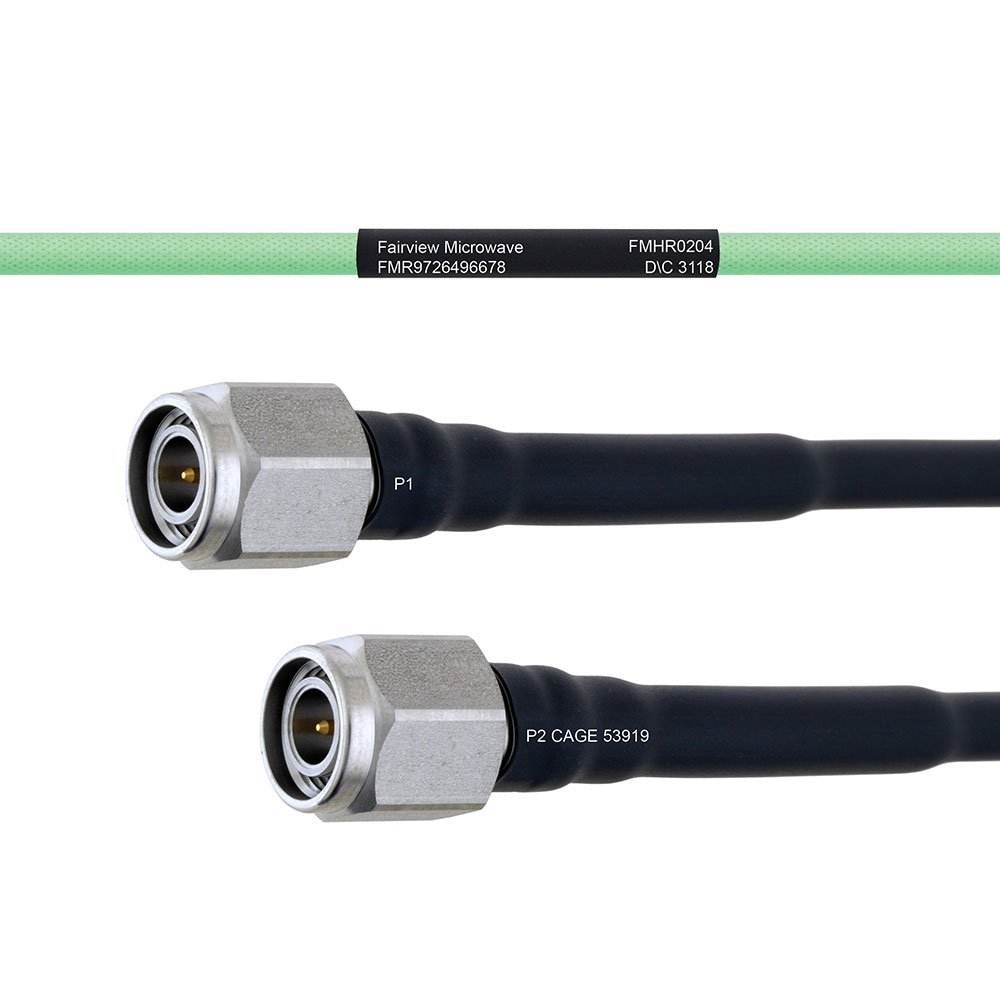

Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0204-30 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 30 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
