T4140012041-000
ActiveTE Connectivity AMP Connectors

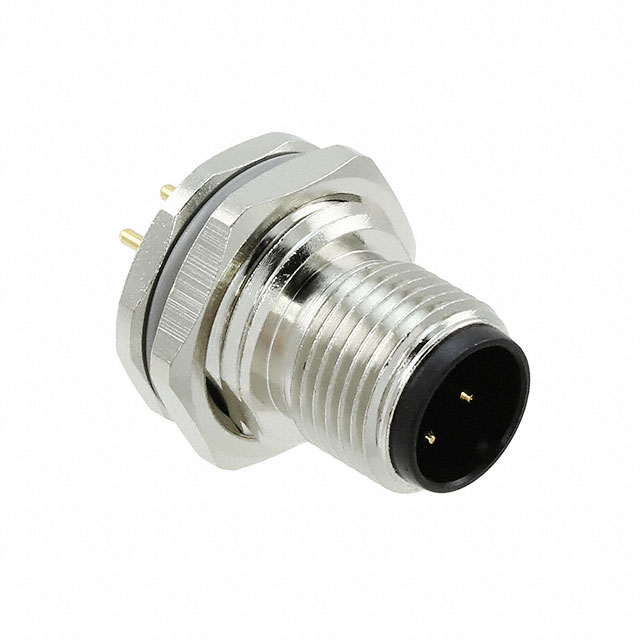

CONN RCPT MALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
T4140012041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 4POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4140012041-000 | T41400 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-4 | M12-4, M12-3 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.94 | |
| 10 | $ 6.04 | |||
| 25 | $ 5.89 | |||
| 50 | $ 5.73 | |||
| 100 | $ 5.38 | |||
| 250 | $ 5.34 | |||
| 500 | $ 5.03 | |||
| 1000 | $ 4.49 | |||
| 2500 | $ 4.00 | |||
T41400 Series
CONN RCPT MALE 4POS GOLD SOLDER
| Part | Material Flammability Rating | Orientation | Shell Finish | Number of Positions | Ingress Protection | Shielding | Applications | Connector Type | Shell Material | Voltage Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Mounting Feature | Primary Material | Contact Material | Color | Insert Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4140012041-000 | UL94 V-0 | A | Nickel | 4 | IP67 - Dust Tight, Waterproof | Unshielded | Industrial | Male Pins, Receptacle | Copper Alloy | 250 VDC | Panel Mount, Through Hole | 85 °C | -40 °C | Solder | Gold | 3 µin | 0.076 µm | 4 A | Bulkhead - Front Side Nut | Metal | Copper Alloy | Silver | Polyamide (PA66), Nylon 6/6 | M12-4 |
TE Connectivity AMP Connectors T4140012041-001 | A | Nickel | 4 | IP67 - Dust Tight, Waterproof | Unshielded | Industrial | Male Pins, Receptacle | Copper Alloy | 250 VDC | Panel Mount, Through Hole | 85 °C | -40 °C | Solder | Gold | 3 µin | 0.076 µm | 4 A | Bulkhead - Front Side Nut | Metal | Copper Alloy | Silver | Polyamide (PA66), Nylon 6/6 | M12-4 | |
TE Connectivity AMP Connectors T4140012031-000 | UL94 V-0 | A | Nickel | IP67 - Dust Tight, Waterproof | Unshielded | Industrial | Male Pins, Receptacle | Copper Alloy | 250 VDC | Panel Mount, Through Hole | 85 °C | -40 °C | Solder | Gold | 3 µin | 0.076 µm | 4 A | Bulkhead - Front Side Nut | Metal | Copper Alloy | Silver | Polyamide (PA66), Nylon 6/6 | M12-3 |
Description
General part information
T41400 Series
4 Position Circular Connector Receptacle, Male Pins Solder
