GSP1.9401.1

Active

SCHURTER Inc.

PWR ENT RCPT GSP1 APPL 10A PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT GSP1 APPL 10A PNL

Technical Specifications

Parameters and characteristics for this part

Specification	GSP1.9401.1

Approval Agency	ENEC, CCC, cURus
Connector Type	Male Blades, Receptacle
Current Rating (Amps)	15 A
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Voltage Rating	250 VAC

PWR ENT RCPT GSP1 APPL 10A PNL

Part	Connector Type	Voltage Rating	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Panel Thickness	Panel Thickness	Approval Agency
SCHURTER Inc. GSP1.9401.1	Male Blades, Receptacle	250 VAC	15 A	Panel Mount, Flange, Through Hole, Right Angle	UL94 V-0	30.3 mm	22.5 mm	IP40	3 mm	0.118 in	CCC, cURus, ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

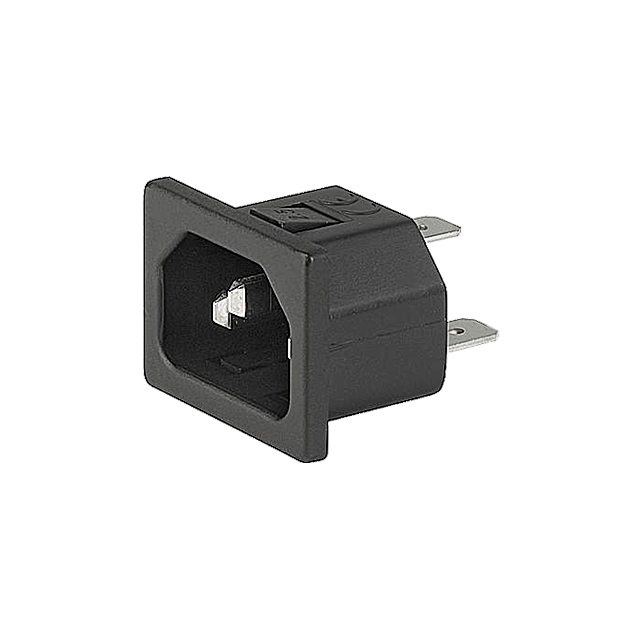

Power Connector Receptacle, Male Blades Panel Mount, Flange; Through Hole, Right Angle
