Technical Specifications
Parameters and characteristics for this part
| Specification | DHG20I1200HA |
|---|---|
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | TO-247-2 |
| Reverse Recovery Time (trr) | 200 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-247 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 2.24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.84 | |
| 30 | $ 3.21 | |||
| 120 | $ 2.67 | |||
| 510 | $ 2.27 | |||
| 1020 | $ 2.18 | |||
| 2010 | $ 2.27 | |||
Description
General part information
DHG20I1200HA

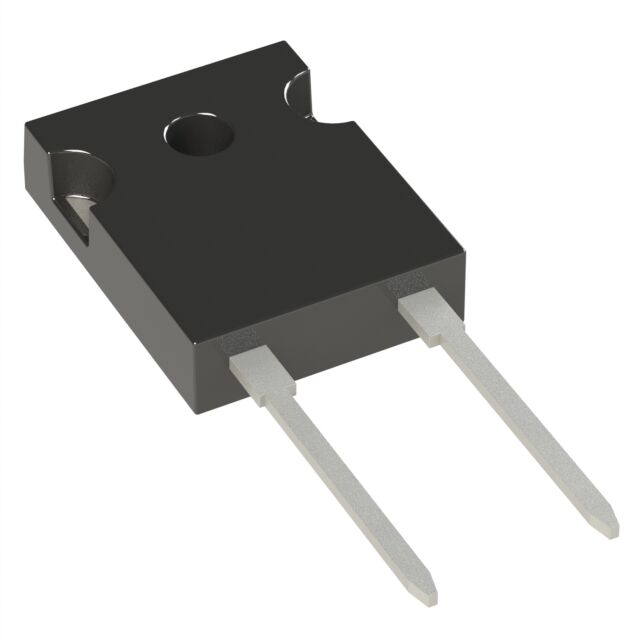

Diode 1200 V 20A Through Hole TO-247
