FLS.01.250.DLAE31

Active

LEMO

CONN MINI COAX PLUG R/A 50 OHM

Search across all available documentation for this part.

Active

LEMO

CONN MINI COAX PLUG R/A 50 OHM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

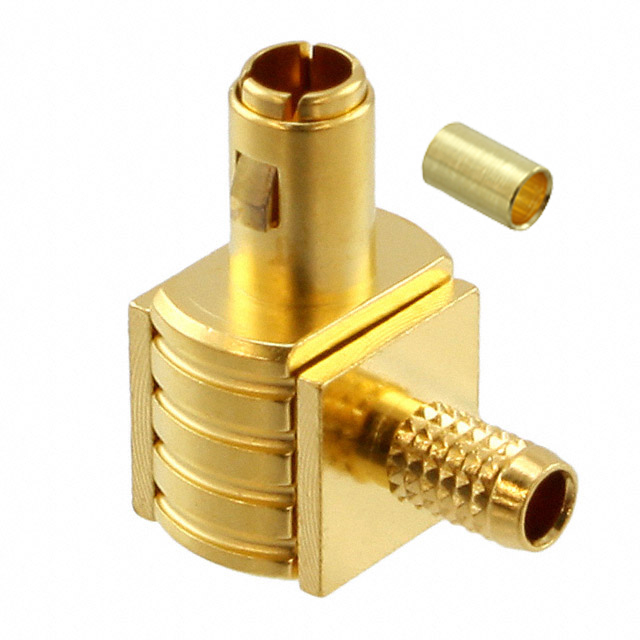

Miniature Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FLS.01.250.DLAE31	FLS.01 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Cable Group	RG-174, 179B, 316, 187A, 188A	RG-174, 179B, 316, 187A, 188A
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	Miniature Coaxial	Miniature Coaxial
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Fastening Type	Snap-On	Push-Pull, Snap-On
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Mating Cycles	1000	1000
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	230 °C	230 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Crimp	Crimp
Voltage Rating	300 VDC	300 VDC

CONN R/A PLUG COAX PIN SLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Voltage Rating	Body Finish	Mating Cycles	Housing Color	Shield Termination	Center Contact Plating	Center Contact Material	Fastening Type	Contact Termination	Body Material	Dielectric Material	Connector Type	Impedance	Connector Style	Cable Group	Number of Ports
LEMO FLS.01.250.DLAE24	230 °C	-55 °C	IP50	Free Hanging (In-Line), Right Angle	300 VDC	Gold	1000	Gold	Crimp	Gold	Brass	Push-Pull	Solder	Brass	Polyetheretherketone (PEEK)	Male Pin, Plug	50 Ohms	Miniature Coaxial
LEMO FLS.01.250.DLAE31	230 °C	-55 °C	IP50	Free Hanging (In-Line), Right Angle	300 VDC	Gold	1000	Gold	Crimp	Gold	Brass	Snap-On	Solder	Brass	Polyetheretherketone (PEEK)	Male Pin, Plug	50 Ohms	Miniature Coaxial	179B, 187A, 188A, 316, RG-174	1
