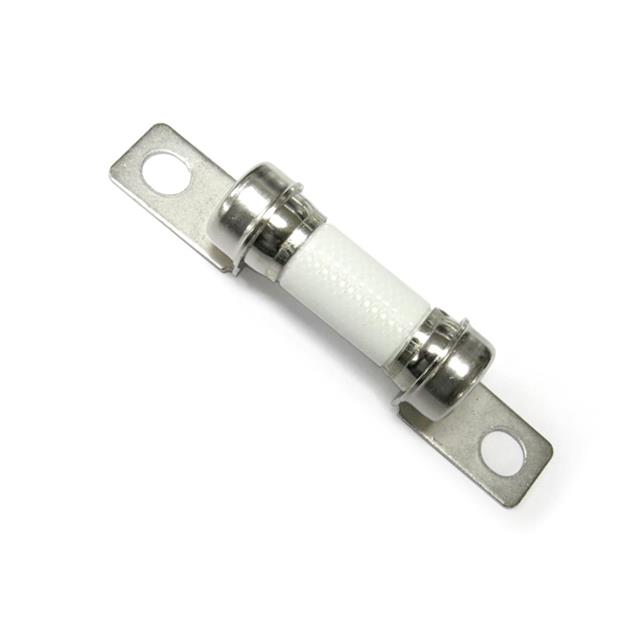

FUSE 10X32 500VDC 300VAC ISO TYPE 60A/ TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

0526060.ZXISOP

Active

LITTELFUSE

FUSE 10X32 500VDC 300VAC ISO TYPE 60A/ TRAY

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0526060.ZXISOP	0526060.P Series

Current Rating (Amps)	60 A	60 A
DC Cold Resistance	0.000011 Ohms	0.000011 - 0.0011 Ohms
Fuse Type	Cartridge, Ceramic	Cartridge, Ceramic
Melting I˛t	6290	6290
Melting I²t	-	6290
Mounting Type	Bolt Mount	Through Hole, Bolt Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Cylindrical, Blade Terminal (Bolt)	Radial Bend Cylinder, Cylindrical, Blade Terminal (Bolt)
Response Time	Fast Blow	Fast Blow
Size / Dimension [diameter]	11.43 mm	11.22 - 11.43 mm
Size / Dimension [diameter]	0.45 "	0.442 - 0.45 "
Size / Dimension [x]	1.386 in	1.378 - 1.386 "
Size / Dimension [x]	35.2 mm	35 - 35.2 mm
Voltage Rating - AC	300 V	300 V
Voltage Rating - DC	500 V	500 V

0526060.P Series

FUSE 10X32 500VDC 300VAC TERMINAL 60A

Part	Response Time	Mounting Type	DC Cold Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Melting I²t	Current Rating (Amps)	Voltage Rating - AC	Package / Case	Fuse Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Melting I˛t
LITTELFUSE 0526060.UXTHP	Fast Blow	Through Hole	0.0011 Ohms	-55 °C	125 °C	500 V	6290	60 A	300 V	Radial Bend Cylinder	Cartridge, Ceramic	1.378 "	0.442 "	11.22 mm	35 mm
LITTELFUSE 0526060.ZXISOP	Fast Blow	Bolt Mount	0.000011 Ohms	-55 °C	125 °C	500 V		60 A	300 V	Blade Terminal (Bolt), Cylindrical	Cartridge, Ceramic	1.386 in	0.45 "	11.43 mm	35.2 mm	6290

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.65
		5	$ 18.71
		10	$ 17.31
		40	$ 14.97
		80	$ 14.03
		400	$ 13.10
Newark	Each	250	$ 13.47

Description

General part information

0526060.P Series

The 526 series fuses are specifically designed and tested to meet the circuit protection needs of compact automotive electronics applications. These robust fuses include a 500 Vac/Vdc rating and provide an excellent interrupting rating. AEC-Q200 qualified, the 526 fuses are ideal for the On-Board Chargers (OBCs) and Power Distribution Units (PDUs) in the latest electric vehicle designs. With available through-hole and bolt-down versions, it’s flexible for either PC board or screw assembly.
