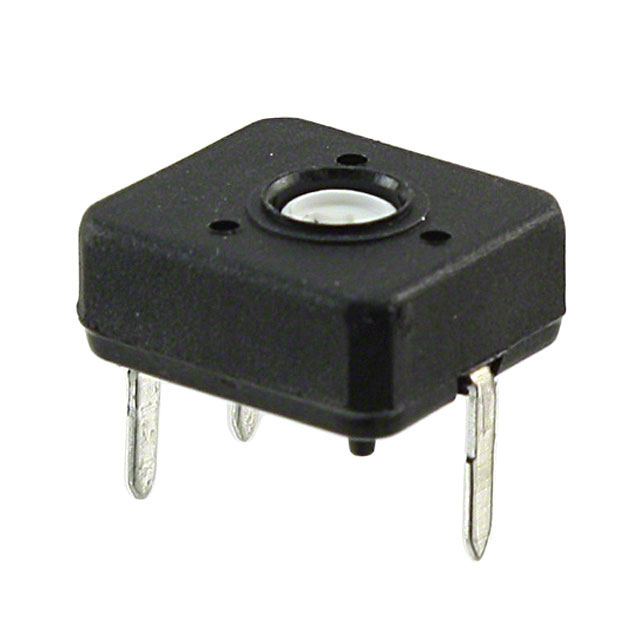

CB10LV471M
ActiveTE Connectivity AMP Connectors
TRIMMER 470 OHM 0.15W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CB10LV471M
ActiveTE Connectivity AMP Connectors
TRIMMER 470 OHM 0.15W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CB10LV471M |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 150 mW |
| Resistance | 470 Ohms |
| Resistive Material | Carbon |
| Temperature Coefficient | 500 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CB10L Series
TRIMMER 470 OHM 0.15W PC PIN TOP
| Part | Number of Turns | Resistive Material | Resistance | Temperature Coefficient | Mounting Type | Tolerance | Termination Style | Adjustment Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CB10LV471M | 1 | Carbon | 470 Ohms | 500 ppm/°C | Through Hole | 20 % | PC Pins | Top Adjustment | 150 mW |
Description
General part information
CB10L Series
470 Ohms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
