EAC311X

Active

Switchcraft Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Switchcraft Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	EAC311X

Accomodates a Fuse	False
Approval Agency	DEMKO, SEMKO, SEV, SETI, NEMKO
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Front or Rear Side Mount
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Termination	Termination	Termination	Material Flammability Rating	Current Rating - Appliance Inlet	Features	Connector Style	Voltage Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions	Connector Type	Accomodates a Fuse	Mounting Type
Switchcraft Inc. EAC311X	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	UL94 V-0	10 A	Front or Rear Side Mount	IEC 320-C14	250 VAC	DEMKO, NEMKO, SEMKO, SETI, SEV	Variable Size	Male Blades, Receptacle		Flange, Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

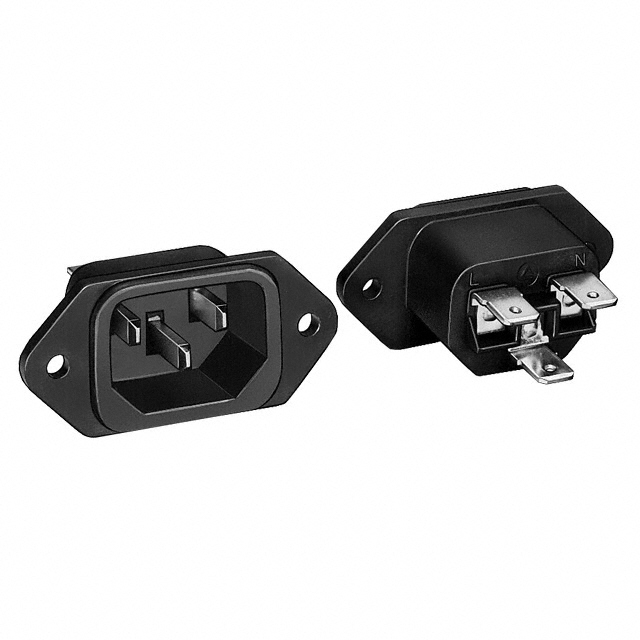

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
