SPHWH2L3D30ED4TPJ3

Samsung Semiconductor, Inc.

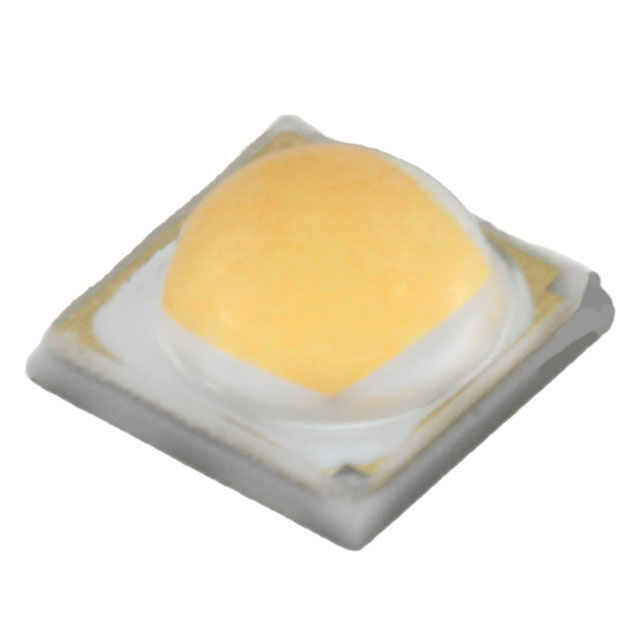

LED LH351B NEUT WHT 4000K 3535

Deep-Dive with AI

Search across all available documentation for this part.

SPHWH2L3D30ED4TPJ3

Samsung Semiconductor, Inc.

LED LH351B NEUT WHT 4000K 3535

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.45

Description

General part information

SPHWH2 Series

LED Lighting LH351B White, Neutral 4000K 2.8V 350mA 120° 1414 (3535 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWH2L3D30ED4TPJ3	SPHWH2 Series

CCT (K)	4000 K	2700 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Neutral, White	Cool, White, Warm, Neutral
Configuration	-	Rectangle
CRI (Color Rendering Index)	80	70 - 92
Current - Max [Max]	1.5 A	1 - 405 A
Current - Test	350 mA	1.08 - 540 mA
Flux @ 85°C, Current - Test	135 lm	105 - 185 lm
Flux @ 85°C, Current - Test	-	120 - 200 lm
Flux @ 85°C, Current - Test	-	90 - 170 lm
Height	-	1.5 mm
Height - Seated (Max)	2.06 mm	2.06 mm
Height - Seated (Max)	-	0.8 - 2.11 mm
Height - Seated (Max) [Max] [z]	0.081 "	0.031 - 0.083 "
Lens Type	-	Flat
Light Emitting Surface (LES)	-	6 - 11 mm
Lumens/Watt @ Current - Test	138 lm/W	84 - 192 lm/W
Luminous Flux @ Current/Temperature	-	800 - 5030 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric, 5050 Metric
Package / Case	1414	1414, 2020, 3-SMD, No Lead
Size / Dimension	-	0.197 - 16 mm
Size / Dimension	-	0.197 - 19 mm
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 - 5 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 - 5 in
Supplier Device Package	3535	3535, 3-SMD, 1414
Supplier Device Package	-	2020
Temperature - Test	-	85 °C
Thermal Resistance of Package	-	3 °C/W
Thermal Resistance of Package [custom]	4 °C/W	4 °C/W
Type	-	Chip On Board (COB)
Viewing Angle	120 °	115 - 120 °
Voltage - Forward (Vf) (Typ)	2.8 V	2.75 - 34.5 V

SPHWH2 Series

LED COB LC020C CL WH RECT 5000K

...

Part	Lumens/Watt @ Current - Test	Type	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Configuration	Current - Test	Color	Light Emitting Surface (LES) [diameter]	Lens Type	Temperature - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Current - Max [Max]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [custom]	CCT (K)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Thermal Resistance of Package [diameter]	Supplier Device Package	Height - Seated (Max) [Max] [z]
Samsung Semiconductor, Inc. SPHWH2HDNC05YHR3C1	135 lm/W	Chip On Board (COB)	1.5 mm	12 mm	15 mm	80	Rectangle	540 mA	Cool, White	8 mm	Flat	85 °C	115 °	2520 lm	34.5 V
Samsung Semiconductor, Inc. SPHWH2L3D30ED4UPM3	158 lm/W					80		350 mA	Warm, White				120 °		2.8 V	155 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	3500 K
Samsung Semiconductor, Inc. SPHWH2HDNE05YHQTC1	135 lm/W	Chip On Board (COB)	1.5 mm	16 mm	19 mm	80	Rectangle	1.08 A	Cool, White	11 mm	Flat	85 °C	115 °	5030 lm	34.5 V		1.62 A												5700 K
Samsung Semiconductor, Inc. SPHWH2L3D30ED4WPG3	117 lm/W					80		350 mA	Warm, White				120 °		2.8 V	115 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	2700 K	130 lm	100 lm
Samsung Semiconductor, Inc. SPHWH2HDNA05YHU2C1	125 lm/W	Chip On Board (COB)	1.5 mm	12 mm	15 mm	80	Rectangle	270 mA	Warm, White	6 mm Dia	Flat	85 °C	115 °	1160 lm	34.5 V		405 mA												3500 K
Samsung Semiconductor, Inc. SPHWH2HDNC05YHRTC1	135 lm/W	Chip On Board (COB)	1.5 mm	12 mm	15 mm	80	Rectangle	540 mA	Cool, White	8 mm	Flat	85 °C	115 °	2520 lm	34.5 V														5000 K
Samsung Semiconductor, Inc. SPHWH2L3D30CD4T0K3	148 lm/W					70		350 mA	Neutral, White				120 °		2.8 V	145 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	4000 K	160 lm	130 lm
Samsung Semiconductor, Inc. SPHWH2L5N6H0YBT5A3				0.197 "	0.197 in			350 mA	Neutral, White				120 °		5.8 V		1 A	Surface Mount		5050 Metric	2020		0.031 "			5 mm	5 mm		4000 K			3 °C/W	2020	0.8 mm
Samsung Semiconductor, Inc. SPHWH2L3D30ED4QTM3	158 lm/W					80		350 mA	Cool, White				120 °		2.8 V	155 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	5700 K
Samsung Semiconductor, Inc. SPHWH2L3D30ED4TPK3	148 lm/W					80		350 mA	Neutral, White				120 °		2.8 V	145 lm	1.5 A	Surface Mount	3535	3535 Metric	1414	2.06 mm	0.081 "	3.5 mm	3.5 mm	0.138 in	0.138 in	4 °C/W	4000 K	160 lm	130 lm
