TA6MSHF

Active

Switchcraft Inc.

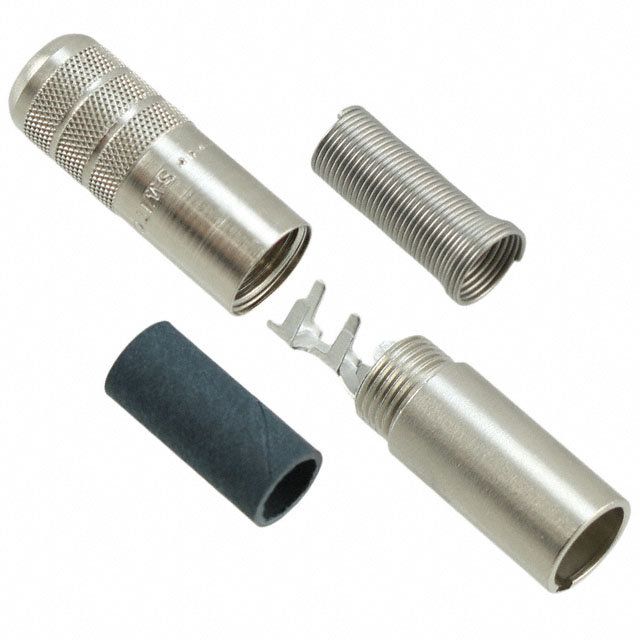

CONN RCPT MALE MINI XLR 6P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 6P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA6MSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN RCPT MALE MINI XLR 6P SLDR

Part	Features	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Size - Insert	Primary Material	Current Rating (Amps)	Insert Material	Contact Material	Applications	Backshell Material, Plating	Shielding	Material Flammability Rating	Contact Finish - Mating	Fastening Type	Shell Finish	Shell Material	Color	Mounting Type	Number of Positions	Voltage Rating
Switchcraft Inc. TA6MSHF	Backshell, Cable Clamp, Ground, Strain Relief	Keyed	85 °C	-55 °C	Male Pins, Receptacle	Mini XLR	Metal	1.5 A	Thermoplastic	Copper Alloy	Audio, Medical	Copper Alloy, Nickel	Shielded	UL94 V-0	Silver	Latch Lock	Nickel	Copper Alloy	Silver	Free Hanging (In-Line)	6	125 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
