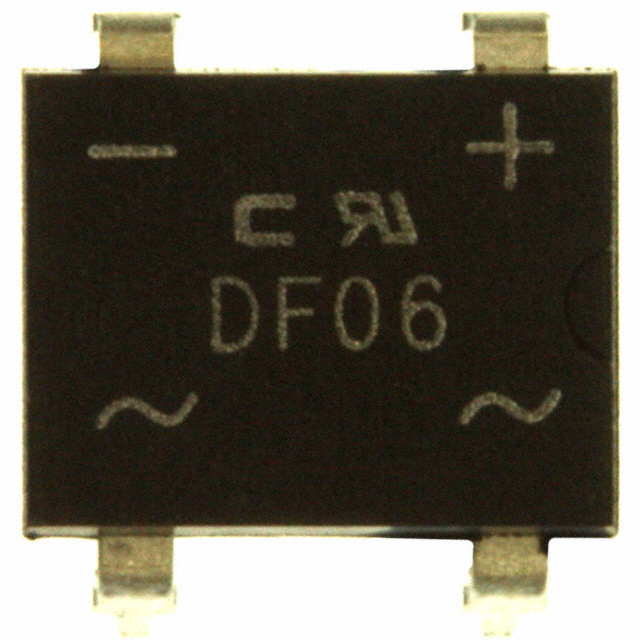

DF06-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 600V 1A 4-DF

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 600V 1A 4-DF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DF06-G	DF06 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-EDIP	4-SMD, Gull Wing, 4-EDIP
Package / Case	0.321 in	0.321 in
Package / Case	8.15 mm	8.15 mm
Supplier Device Package	4-DF	DFS, 4-DF
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V	600 V

BRIDGE RECT 1PHASE 600V 1A DFS

Part	Voltage - Peak Reverse (Max) [Max]	Diode Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Package / Case	Package / Case
Comchip Technology DF06SP-HF	600 V	Single Phase	DFS	10 µA	Surface Mount	1.1 V	1 A	4-SMD, Gull Wing	-55 °C	150 °C	Standard
Comchip Technology DF06-G	600 V	Single Phase	4-DF	10 µA	Through Hole	1.1 V	1 A	4-EDIP	-55 °C	150 °C	Standard	0.321 in	8.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole 4-DF
