104483-2
ActiveTE Connectivity AMP Connectors

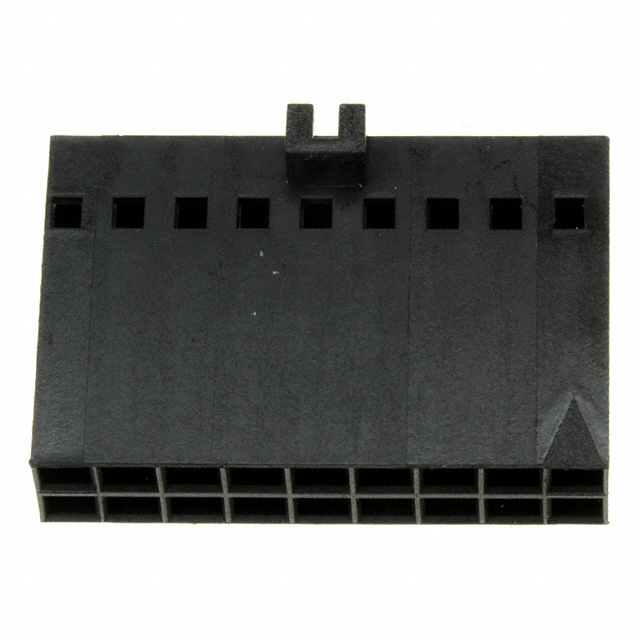

CONN RCPT HSG 18POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104483-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 18POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104483-2 | 104483 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 18 | 18 - 54 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.77 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.34 | |||
| 100 | $ 1.28 | |||
| 250 | $ 1.20 | |||
| 500 | $ 1.14 | |||
| 1000 | $ 1.09 | |||
| 2500 | $ 1.02 | |||
104483 Series
CONN RCPT HSG 20POS 2.54MM
| Part | Mounting Type | Row Spacing [x] | Row Spacing | Insulation Material | Contact Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination | Connector Type | Number of Positions | Features | Pitch [x] | Pitch [x] | Color | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104483-3 | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Thermoplastic | Female Socket | 2 | 125 °C | -65 ░C | Crimp | Receptacle | 20 | Polarizing Key | 2.54 mm | 0.1 in | Black | Contacts Not Included |
TE Connectivity AMP Connectors 104483-6 | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Thermoplastic | Female Socket | 2 | 125 °C | -65 ░C | Crimp | Receptacle | 38 | Polarizing Key | 2.54 mm | 0.1 in | Black | Contacts Not Included |
TE Connectivity AMP Connectors 104483-7 | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Thermoplastic | Female Socket | 2 | 125 °C | -65 ░C | Crimp | Receptacle | 54 | Polarizing Key | 2.54 mm | 0.1 in | Black | Contacts Not Included |
TE Connectivity AMP Connectors 104483-2 | Free Hanging (In-Line) | 0.1 in | 2.54 mm | Thermoplastic | Female Socket | 2 | 125 °C | -65 ░C | Crimp | Receptacle | 18 | Polarizing Key | 2.54 mm | 0.1 in | Black | Contacts Not Included |
Description
General part information
104483 Series
18 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
