EN3P6MRAPCX

Active

Switchcraft Inc.

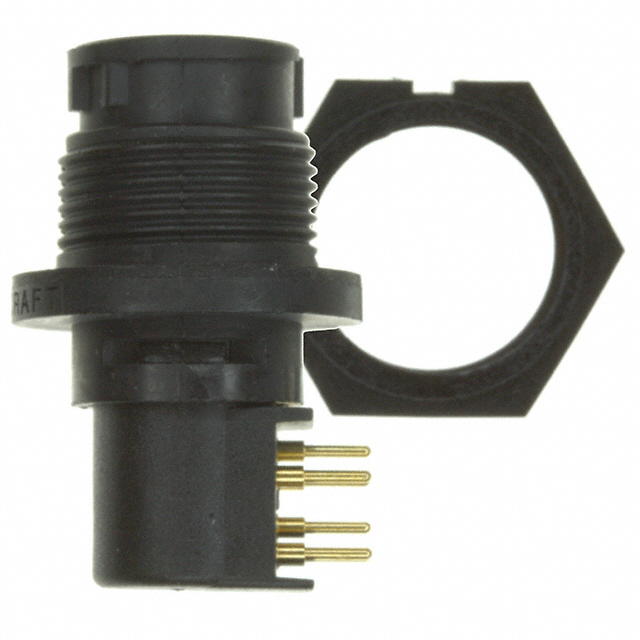

CONN RCPT MALE 6POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

EN3P6MRAPCX

Active

Switchcraft Inc.

CONN RCPT MALE 6POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.84
		10	$ 16.49
		25	$ 15.78
		50	$ 15.71

Description

General part information

EN3P6M Series

6 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P6MRAPCX	EN3P6M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Circuit Board, Solder, Solder
Voltage Rating	250 VAC	250 VAC

EN3P6M Series

CONN RCPT MALE 6POS GOLD SOLDER

Part	Orientation	Mounting Type	Number of Positions	Fastening Type	Voltage Rating	Termination	Contact Finish - Mating	Shielding	Contact Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Color	Ingress Protection	Material Flammability Rating	Current Rating (Amps)	Insert Material	Connector Type	Mounting Feature
Switchcraft Inc. EN3P6MRAPCBW	Keyed	Panel Mount, Right Angle, Through Hole	6	Bayonet Lock	250 VAC	Circuit Board, Solder	Gold	Unshielded	Copper Alloy	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Black	IP66/IP68	UL94 V-0	4 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut
Switchcraft Inc. EN3P6MRAPCBN	Keyed	Panel Mount, Right Angle, Through Hole	6	Bayonet Lock	250 VAC	Circuit Board, Solder	Gold	Unshielded	Copper Alloy	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Black	IP66/IP68	UL94 V-0	4 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut
Switchcraft Inc. EN3P6MPX	Keyed	Panel Mount, Through Hole	6	Bayonet Lock	250 VAC	Solder	Gold	Unshielded	Copper Alloy	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Black	IP66/IP68	UL94 V-0	7.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut
Switchcraft Inc. EN3P6MX	Keyed		6	Bayonet Lock	250 VAC		Gold	Unshielded	Copper Alloy	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Black	IP66/IP68	UL94 V-0	7.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut
Switchcraft Inc. EN3P6MRAPCX	Keyed	Panel Mount, Right Angle, Through Hole	6	Bayonet Lock	250 VAC	Solder	Gold	Unshielded	Copper Alloy	Plastic	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Black	IP66/IP68	UL94 V-0	4 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut
