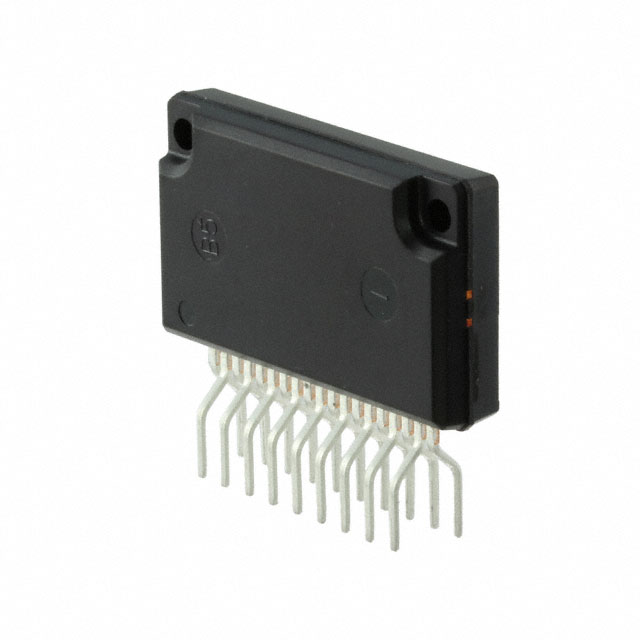

STK672-740B-E

Obsolete

Sanyo

TWO PHASE, STEPPING MOTOR DRIVER

Search across all available documentation for this part.

Obsolete

Sanyo

TWO PHASE, STEPPING MOTOR DRIVER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STK672-740B-E	STK672 Series

Applications	General Purpose	General Purpose
Current - Output	3.3 A	2 - 3.3 A
Function	Driver - Fully Integrated, Control and Power Stage	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel	Parallel
Motor Type - Stepper	Unipolar	Unipolar
Mounting Type	Through Hole	Through Hole
Operating Temperature	-	150 °C
Operating Temperature [Max]	105 °C	105 °C
Operating Temperature [Min]	-20 °C	-20 °C
Output Configuration	Half Bridge (2)	Half Bridge (2)
Package / Case	19-SSIP Formed Leads	19-SSIP Formed Leads
Step Resolution	1, 0.5	0.5 - 1
Step Resolution	-	1/16, 1, 1/4, 1/2, 1/8
Supplier Device Package	19-SIP	19-SIP
Technology	Power MOSFET	Power MOSFET
Voltage - Load [Max]	46 V	45 - 46 V
Voltage - Load [Min]	0 V	0 - 10 V
Voltage - Supply [Max]	5.25 V	5.25 V
Voltage - Supply [Min]	4.75 V	4.75 V

2-PHASE STEPPING MOTOR DRIVER

Part	Operating Temperature	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output	Applications	Package / Case	Function	Motor Type - Stepper	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Technology	Mounting Type	Step Resolution	Output Configuration	Interface	Step Resolution	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo STK672-401C-E	150 °C	4.75 V	5.25 V	2 A	General Purpose	19-SSIP Formed Leads	Driver - Fully Integrated, Control and Power Stage	Unipolar	10 V	45 V	19-SIP	Power MOSFET	Through Hole	1, 1/16, 1/2, 1/4, 1/8	Half Bridge (2)	Parallel
Sanyo STK672-740B-E		4.75 V	5.25 V	3.3 A	General Purpose	19-SSIP Formed Leads	Driver - Fully Integrated, Control and Power Stage	Unipolar	0 V	46 V	19-SIP	Power MOSFET	Through Hole		Half Bridge (2)	Parallel	0.5, 1	105 °C	-20 °C
