Description
General part information
EVRT375ERR47KE

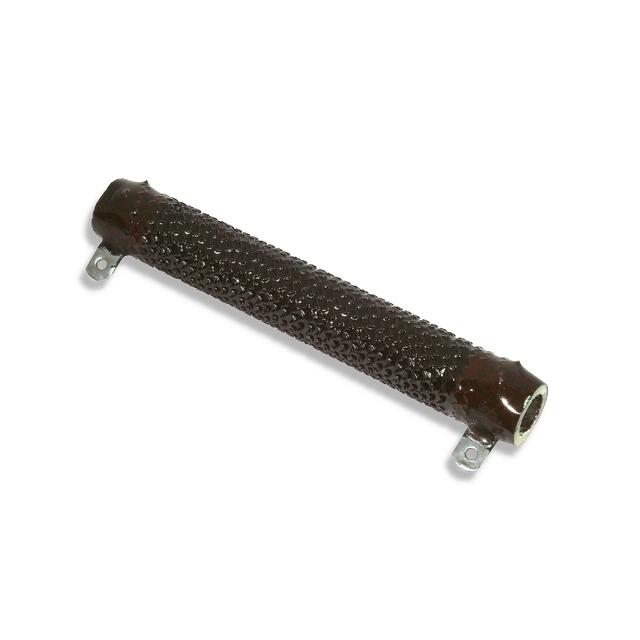

470 mOhms ±10% 1000W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | EVRT375ERR47KE |
|---|---|
| Coating | Vitreous Enamel Coated |
| Composition | Wirewound |
| Features | Moisture Resistant, Safety, Flame Retardant Coating |
| Housing Type | Vitreous Enamel Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Tubular, Radial |
| Power (Watts) | 1 kW |
| Resistance | 470 mOhms |
| Size / Dimension Diameter | 2.008 in |
| Size / Dimension Length | 14.764 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 10 % |
