Q-7104F0005009I

Active

Amphenol Custom Cable

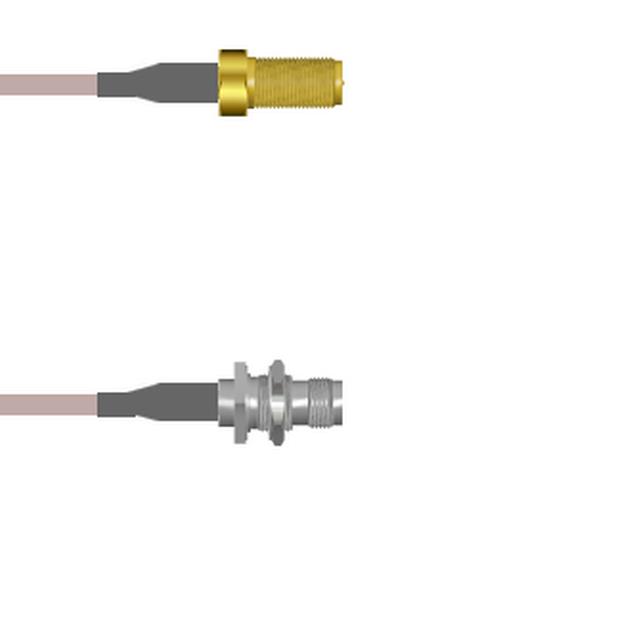

COAX CBL RP-SMA TO TNC 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-7104F0005009I

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO TNC 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7104F0005009I

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to TNC

Q-7104F0 Series

Part	Style	2nd Connector	1st Contact Gender	Cable Type	1st Connector	Connector Impedance	1st Connector Mounting Type	2nd Connector Mounting Feature	Length	Length	2nd Contact Gender	Frequency - Max [Max]	Cable Impedance	Color	Features	Overall Impedance	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-7104F0003036I	RP-SMA to TNC	TNC Jack	Male	RG-174	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	91.44 cm	36 in	Female	1 GHz	50 Ohms	Black	Shielded	50 Ohms	Panel Mount
Amphenol Custom Cable Q-7104F0003084I	RP-SMA to TNC	TNC Jack	Male	RG-174	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	2.1 m	84 in	Female	1 GHz	50 Ohms	Black	Shielded	50 Ohms	Panel Mount	7 ft
Amphenol Custom Cable Q-7104F0005009I	RP-SMA to TNC	TNC Jack	Male	RG-316	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	228.6 mm	9 "	Female	3 GHz	50 Ohms	Copper	Shielded	50 Ohms	Panel Mount
Amphenol Custom Cable Q-7104F0005048I	RP-SMA to TNC	TNC Jack	Male	RG-316	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	1200 mm	48 in	Female	3 GHz	50 Ohms	Copper	Shielded	50 Ohms	Panel Mount	4 ft
Amphenol Custom Cable Q-7104F0005001M	RP-SMA to TNC	TNC Jack	Male	RG-316	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	1 m	39.4 in	Female	3 GHz	50 Ohms	Copper	Shielded	50 Ohms	Panel Mount	3.3 ft
Amphenol Custom Cable Q-7104F0005036I	RP-SMA to TNC	TNC Jack	Male	RG-316	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	91.44 cm	36 in	Female	3 GHz	50 Ohms	Copper	Shielded	50 Ohms	Panel Mount
Amphenol Custom Cable Q-7104F0005060I	RP-SMA to TNC	TNC Jack	Male	RG-316	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	1.5 m	5 '	Female	3 GHz	50 Ohms	Copper	Shielded	50 Ohms	Panel Mount	5 ft
Amphenol Custom Cable Q-7104F0005024I	RP-SMA to TNC	TNC Jack	Male	RG-316	RP-SMA Jack	50 Ohms	Free Hanging (In-Line)	Bulkhead - Front Side Nut	609.6 mm	24 "	Female	3 GHz	50 Ohms	Copper	Shielded	50 Ohms	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 44.03
		25	$ 43.17
		50	$ 42.31
		100	$ 41.45
		250	$ 40.60

Description

General part information

Q-7104F0 Series

Cable Assembly Coaxial RP-SMA to TNC RG-316 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
