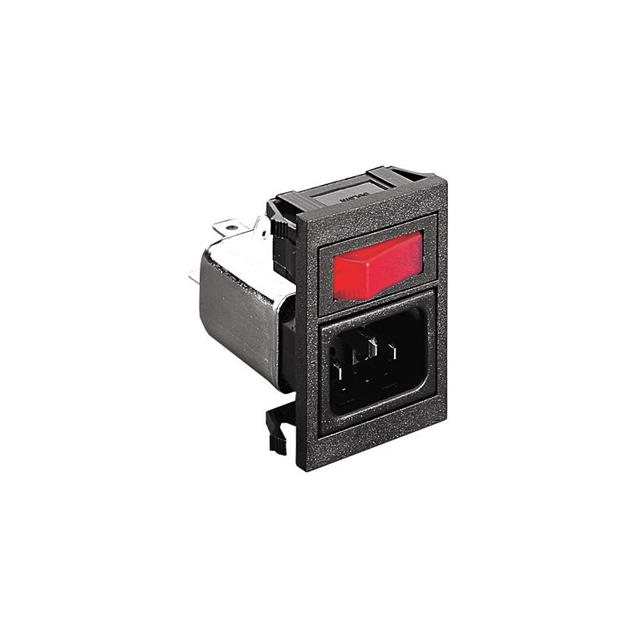

BZV03/A0620/01

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BZV03/A0620/01

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZV03/A0620/01	BZV03/A Series

Accomodates a Fuse	False	True, False
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	6 A	3 - 6 A
Features	-	Voltage Selector, Bleed Resistor, Surge Protection
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	-	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm	34.4 mm
Panel Cutout Dimensions [y]	48.4 mm	48.4 - 76.5 mm
Panel Thickness [Max]	3 mm	3 mm
Panel Thickness [Max]	0.118 in	0.118 in
Panel Thickness [Min]	0.039 in	0.039 in
Panel Thickness [Min]	1 mm	1 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

BZV03/A Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Switch Features	Mounting Type	Material Flammability Rating	Features	Connector Type	Current Rating - Appliance Inlet	Filter Type	Current Rating - Filter	Connector Style	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet
BULGIN LIMITED BZV03/A0620/15	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0	Voltage Selector	Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	6 A	IEC 320-C14	Fuse Holder, Twin Fused	250 VAC
BULGIN LIMITED BZV03/A0620/01	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	48.4 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0		Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	6 A	IEC 320-C14		250 VAC
BULGIN LIMITED BZV03/A0620/09	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0		Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	6 A	IEC 320-C14	Fuse Holder, Twin Fused	250 VAC
BULGIN LIMITED BZV03/A0333/05	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0	Bleed Resistor, Surge Protection	Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	3 A	IEC 320-C14	Fuse Holder, Twin Fused	250 VAC
BULGIN LIMITED BZV03/A0633/05	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0	Bleed Resistor, Surge Protection	Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	6 A	IEC 320-C14	Fuse Holder, Twin Fused	250 VAC
BULGIN LIMITED BZV03/A0320/06	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0		Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	3 A	IEC 320-C14	Fuse Holder, Twin Fused	250 VAC
BULGIN LIMITED BZV03/A0620/06	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	76.5 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount, Snap-In	UL94 V-0		Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	6 A	IEC 320-C14	Fuse Holder, Twin Fused	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	120	$ 37.93
Newark	Each	1	$ 57.94

Description

General part information

BZV03/A Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
