EDLNF224A5R5C
ObsoleteCornell Dubilier Knowles
CAP 220MF 5.5V T/H
EDLNF224A5R5C
ObsoleteCornell Dubilier Knowles
CAP 220MF 5.5V T/H
Description
General part information
EDLNF224A5R5C

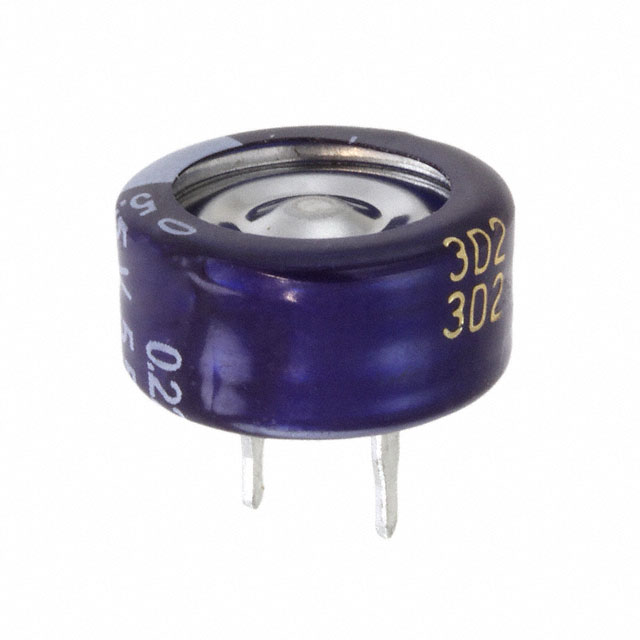

220 mF (EDLC) Supercapacitor 5.5 V Radial, Can 75Ohm @ 1kHz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EDLNF224A5R5C |
|---|---|
| Capacitance | 220 mF |
| ESR (Equivalent Series Resistance) | 75 Ohm |
| Height - Seated (Max) | 0.295 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.531 in |
| Termination | PC Pins |
| Voltage - Rated | 5.5 V |
