01K108-S00D3

Active

Rosenberger

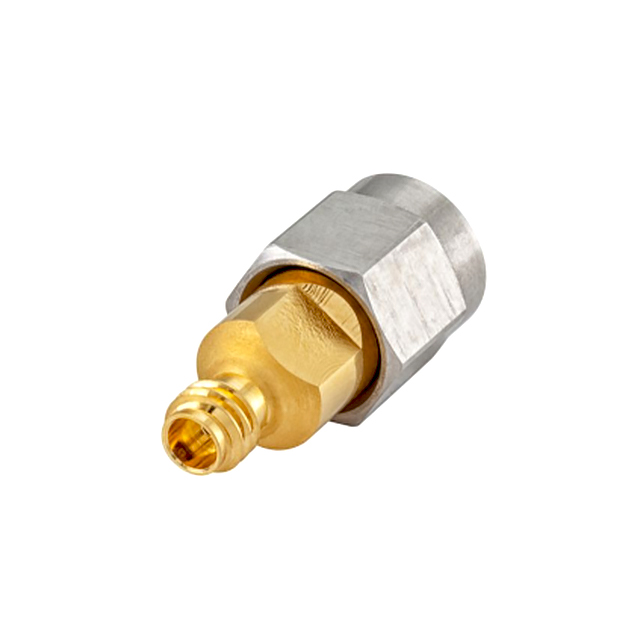

ADAPT 1.00MM JACK - 1.85MM PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT 1.00MM JACK - 1.85MM PLUG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 2325.85

General part information

Adapter Coaxial Connector 1.0mm Jack, Female Socket To 1.85mm Plug, Male Pin 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	01K108-S00D3	01K108 Series

Adapter Series [Max]	RPC-1.85	RPC-1.85
Adapter Series [Min]	RPC-1.00	RPC-1.00
Adapter Type	Plug to Jack	Plug to Jack, Jack to Jack
Body Finish	Gold; Passivated	Gold; Passivated, Gold
Body Material	Beryllium Copper, Stainless Steel	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	1 mm	1 mm
Convert From (Adapter End)	Female Socket	Female Socket
Convert To (Adapter End)	1.85mm Plug, Male Pin	1.85mm Plug, Male Pin, Female Socket, 1.85mm Jack
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Frequency - Max [Max]	70 GHz	70 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

ADAPT 1.00MM JACK - 1.85MM PLUG

Part	Adapter Series [Min]	Adapter Series [Max]	Mounting Type	Center Contact Material	Impedance	Adapter Type	Conversion Type	Dielectric Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Center Contact Plating	Body Material	Convert From (Adapter End)	Convert From (Adapter End)	Frequency - Max [Max]	Mating Cycles	Style	Center Gender
Rosenberger 01K108-S00D3	RPC-1.00	RPC-1.85	Free Hanging (In-Line)	Beryllium Copper	50 Ohms	Plug to Jack	Between Series	Polyetheretherketone (PEEK)	Gold; Passivated	85 °C	-40 °C	1.85mm Plug, Male Pin	Gold	Beryllium Copper, Stainless Steel	1 mm	Female Socket	70 GHz	500	Straight
Rosenberger 01K108-K00D3	RPC-1.00	RPC-1.85	Free Hanging (In-Line)	Beryllium Copper		Jack to Jack	Between Series	Polyetheretherketone (PEEK)	Gold	85 °C	-40 °C	1.85mm Jack, Female Socket	Gold	Beryllium Copper	1 mm	Female Socket	70 GHz	500	Straight	Female to Female
