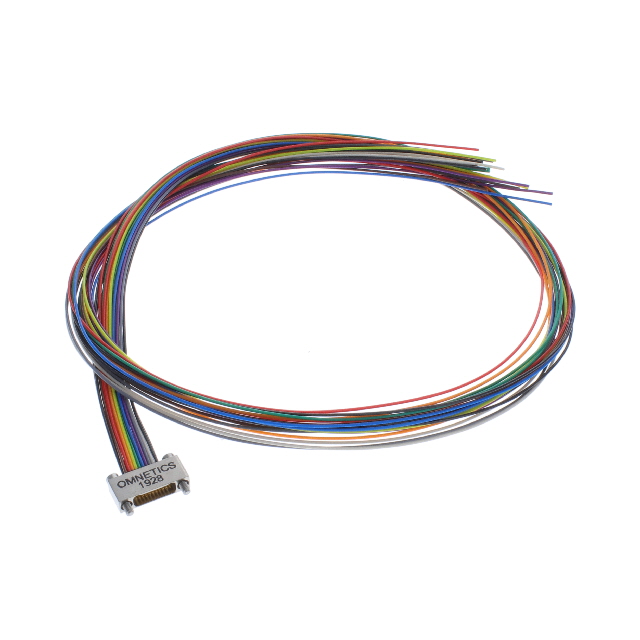

A29000-121
ActiveOmnetics
CABLE ASSY D-NANO-D 21P 457.2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A29000-121
ActiveOmnetics
CABLE ASSY D-NANO-D 21P 457.2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A29000-121 |
|---|---|
| 1st Connector | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads |
| Color | Multiple, Individual |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 21 |
| Shielding | Unshielded |
| Type | D-Type, Nano-D |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 238.79 | |
| 10 | $ 221.28 | |||
| 25 | $ 199.27 | |||
| 50 | $ 198.34 | |||
Description
General part information
A29000-121
D-Sub Cable Assembly D-Type, Nano-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded
