TSM16-H50CQ25ST-10.000M
ActiveTransko Electronics, Inc.
XTAL OSC XO 10.0000MHZ HCMOS SMD
TSM16-H50CQ25ST-10.000M
ActiveTransko Electronics, Inc.
XTAL OSC XO 10.0000MHZ HCMOS SMD
Description
General part information
TSM16-H50CQ25ST-10.000M

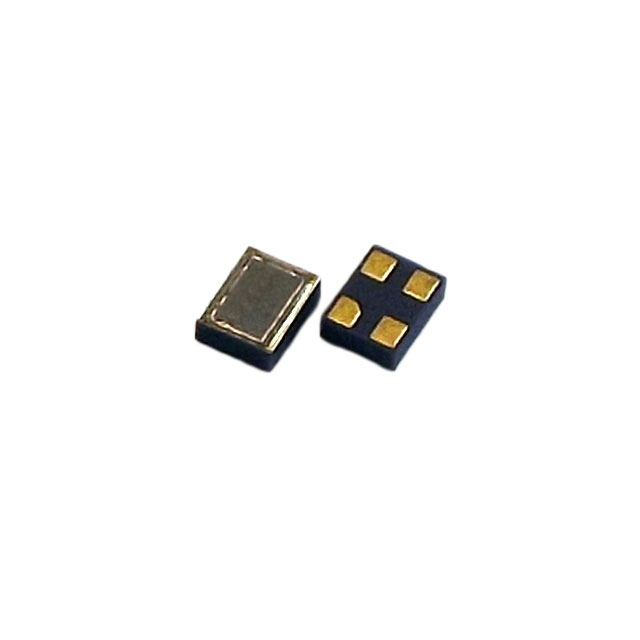

10 MHz XO (Standard) HCMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TSM16-H50CQ25ST-10.000M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2 mA |
| Frequency | 10 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.028 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.047 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
