1376136-2

Active

TE Connectivity AMP Connectors

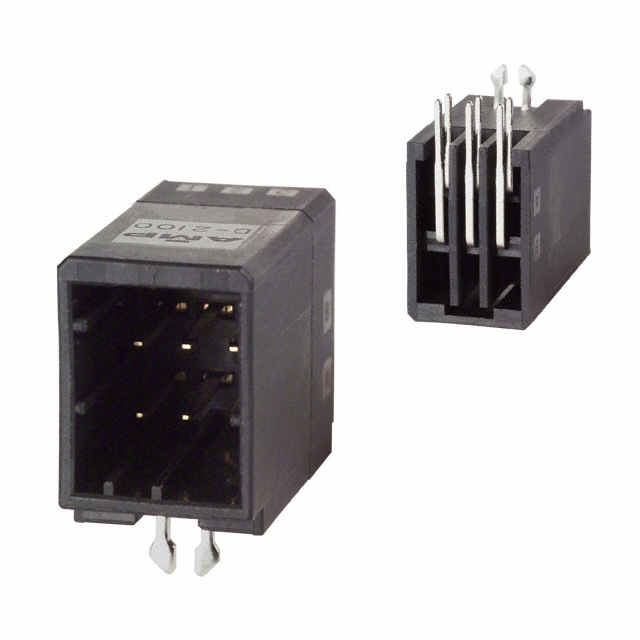

CONN HEADER R/A 6POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	1376136-2

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	5 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	14.7 mm
Insulation Height	0.579 in
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

CONN HEADER R/A 6POS 2.5MM

Part	Current Rating (Amps)	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Connector Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Fastening Type	Shrouding	Termination	Number of Positions Loaded	Voltage Rating	Mounting Type	Material Flammability Rating	Insulation Material	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Style	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Material	Contact Finish - Mating	Number of Rows
TE Connectivity AMP Connectors 1376136-2	5 A	6	105 ░C	-55 °C	14.7 mm	0.579 in	Header	Tin	2.5 mm	0.098 in	Rectangular	Detent Lock	Shrouded - 4 Wall	Solder	All	250 VAC	Through Hole, Right Angle	UL94 V-0	Glass Filled, Polyester, Thermoplastic	Tab	0.134 in	3.4 mm	Board to Board, Cable	Black	15 µin	0.38 µm	General Purpose, Industrial	Copper Alloy	Gold	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
