1217580-1
ActiveTE Connectivity AMP Connectors

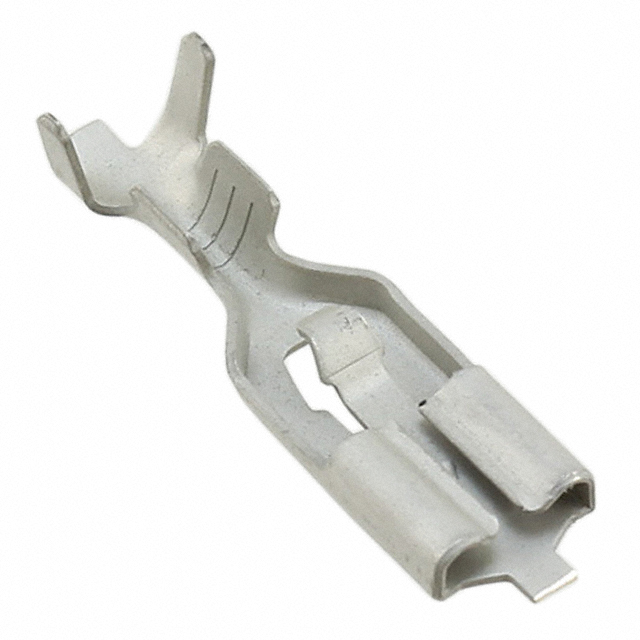

CONN QC RCPT 16-20AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217580-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 16-20AWG 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217580-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in |
| Insulation Diameter [Min] | 2.29 mm |
| Insulation Diameter [Min] | 0.09 in |
| Length - Overall [x] | 0.755 in |
| Length - Overall [x] | 19.18 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 4.98 mm |
| Tab Length | 0.196 in |
| Tab Thickness | 0.025 " |
| Tab Thickness | 0.64 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.22 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| Tape & Reel (TR) | 12000 | $ 0.10 | ||
| 36000 | $ 0.09 | |||
| 60000 | $ 0.07 | |||
1217580 Series
CONN QC RCPT 16-20AWG 0.187
| Part | Length - Overall [x] | Length - Overall [x] | Terminal Type | Gender | Insulation | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Contact Finish | Tab Length | Tab Length | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217580-1 | 0.755 in | 19.18 mm | Standard | Female | Non-Insulated | 0.025 " | 0.64 mm | 4.75 mm | 0.187 in | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Tin | 4.98 mm | 0.196 in | 16 AWG | 20 AWG | Free Hanging (In-Line) | Brass | Crimp |
Description
General part information
1217580 Series
0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
