FCI-INGAAS-3000-20

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 1550NM 3MM TO5

Search across all available documentation for this part.

Active

OSI Optoelectronics, Inc.

SENSOR PHOTODIODE 1550NM 3MM TO5

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FCI-INGAAS-3000-20	FCI-INGAAS Series

Active Area	3 mm²	1.5 - 3 mm²
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Lens Top Metal Can, TO-5 Variant	TO-46-3 Lens Top Metal Can, Lens Top Metal Can, TO-5 Variant
Package / Case	3 Lead	3 Lead
Responsivity @ nm [custom]	0.95 A/W	0.95 A/W
Responsivity @ nm [custom]	0.9 A/W	0.9 A/W
Spectral Range [Max]	1700 nm	1700 nm
Spectral Range [Min]	900 nm	900 nm
Voltage - DC Reverse (Vr) (Max) [Max]	2 V	2 V
Wavelength	1550 nm	1550 nm

SENSOR PHOTODIODE 1550NM TO46-3

Part	Package / Case	Spectral Range [Min]	Spectral Range [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Responsivity @ nm [custom]	Responsivity @ nm [custom]	Wavelength	Active Area	Package / Case
OSI Optoelectronics, Inc. FCI-INGAAS-1500	TO-46-3 Lens Top Metal Can	900 nm	1700 nm	Through Hole	-40 °C	75 ░C	2 V	0.95 A/W	0.9 A/W	1550 nm	1.5 mm²
OSI Optoelectronics, Inc. FCI-INGAAS-3000-20	Lens Top Metal Can, TO-5 Variant	900 nm	1700 nm	Through Hole	-40 °C	75 ░C	2 V	0.95 A/W	0.9 A/W	1550 nm	3 mm²	3 Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 216.57

General part information

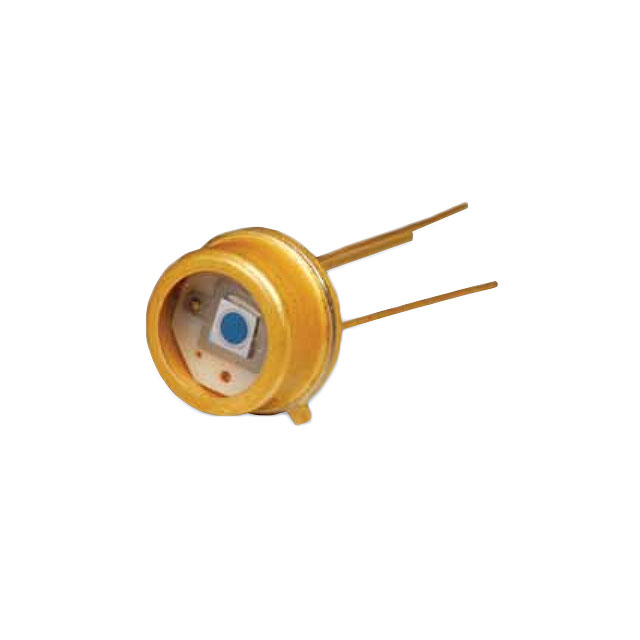

Photodiode 1550nm TO-5 Variant, 3 Leads, Lens Top Metal Can
