8282-8PG-513
ActiveConxall/Switchcraft

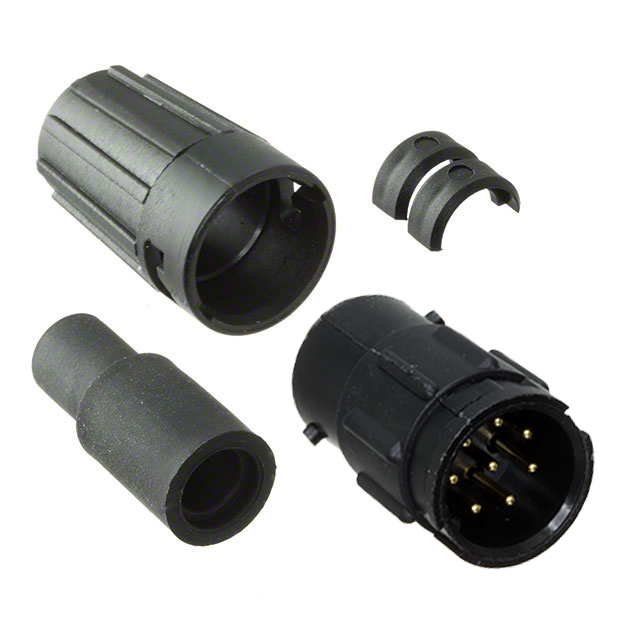

CONN RCPT MALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

8282-8PG-513
ActiveConxall/Switchcraft
CONN RCPT MALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 8282-8PG-513 | 8282-8PG Series |
---|---|---|
Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
Cable Opening | - | 4.83 - 5.59 mm |
Cable Opening | - | 5.84 mm |
Cable Opening | - | 0.19 - 0.22 in |
Cable Opening | - | 0.21 - 0.25 in |
Cable Opening | - | 5.33 - 6.35 mm |
Cable Opening | - | 2.29 mm |
Cable Opening | - | 0.09 - 0.14 in |
Cable Opening | - | 3.56 mm |
Cable Opening | - | 0.16 - 0.18 in |
Cable Opening | - | 0.18 - 0.2 in |
Cable Opening | - | 4.06 - 4.57 mm |
Cable Opening | - | 4.57 - 5.08 mm |
Cable Opening [custom] | 0.13 in, 0.15 in | 0.13 - 0.17 in |
Cable Opening [custom] | 3.81 mm, 3.3 mm | 3.3 - 4.32 mm |
Color | Black | Black |
Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
Contact Finish - Mating | Gold | Gold |
Contact Material | Brass | Brass |
Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
Fastening Type | Bayonet Lock | Bayonet Lock |
Features | Backshell | Backshell |
Ingress Protection | Weathertight | Weathertight |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Number of Positions | 8 | 8 |
Operating Temperature [Max] | 115 °C | 115 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Orientation | Keyed | Keyed |
Primary Material | Plastic | Plastic |
Shielding | Unshielded | Unshielded |
Voltage Rating | 600 V | 600 V |
8282-8PG Series
CONN RCPT MALE 8P GOLD SLDR CUP
Part | Backshell Material, Plating | Shielding | Number of Positions | Mounting Type | Applications | Voltage Rating | Fastening Type | Contact Material | Connector Type | Orientation | Features | Primary Material | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Current Rating (Amps) | Ingress Protection | Color | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 8282-8PG-321 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | ||||||||||
Conxall/Switchcraft 8282-8PG-315 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | ||||||||||||
Conxall/Switchcraft 8282-8PG-3DC | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | ||||||||||||||
Conxall/Switchcraft 8282-8PG-519 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | 4.83 mm | 0.19 in | 0.21 in | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 5.33 mm | ||||||||||
Conxall/Switchcraft 8282-8PG-311 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | |||||||||||
Conxall/Switchcraft 8282-8PG-516 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | ||||||||||
Conxall/Switchcraft 8282-8PG-318 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 0.18 in | 0.2 in | 4.57 mm | 5.08 mm | ||||||||||
Conxall/Switchcraft 8282-8PG-522 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | 5.59 mm | 0.22 in | 0.25 in | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 6.35 mm | ||||||||||
Conxall/Switchcraft 8282-8PG-513 | Nylon, Polyamide (PA) | Unshielded | 8 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | 600 V | Bayonet Lock | Brass | Male Pins, Receptacle | Keyed | Backshell | Plastic | Varies by Wire Gauge | Weathertight | Black | Gold | -40 °C | 115 °C | 0.13 in, 0.15 in | 3.3 mm, 3.81 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 11.48 | |
10 | $ 9.95 | |||
25 | $ 9.62 |
Description
General part information
8282-8PG Series
8 Position Circular Connector Receptacle, Male Pins Solder Cup
