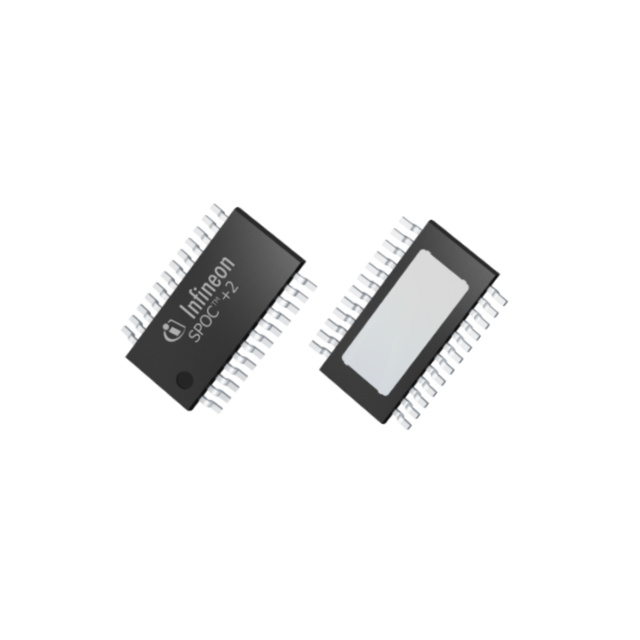

BTS710404ESEXUMA1

Active

Infineon Technologies

THE BTS71040-4ESE IS A SPI POWER CONTROLLER, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS

Search across all available documentation for this part.

Active

Infineon Technologies

THE BTS71040-4ESE IS A SPI POWER CONTROLLER, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS

Technical Specifications

Parameters and characteristics for this part

Specification	BTS710404ESEXUMA1

Current - Output (Max) [Max]	3 A
Fault Protection	Over Current, UVLO, Over Voltage, Short Circuit
Grade	Automotive
Input Type	Non-Inverting
Interface	SPI
Mounting Type	Surface Mount
Number of Outputs	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	24-TSSOP Exposed Pad
Package / Case [custom]	3.9 mm
Package / Case [custom]	0.154 in
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:2
Rds On (Typ)	22.5 mOhm
Supplier Device Package	PG-TSDSO-24
Switch Type	General Purpose
Voltage - Load [Max]	18 V
Voltage - Load [Min]	6 V
Voltage - Supply (Vcc/Vdd)	False

Part	Mounting Type	Output Type	Qualification	Fault Protection	Grade	Voltage - Load [Max]	Voltage - Load [Min]	Current - Output (Max) [Max]	Input Type	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Type	Package / Case [custom]	Package / Case	Package / Case [custom]	Number of Outputs	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output [custom]	Supplier Device Package	Interface	Output Configuration
Infineon Technologies BTS710404ESEXUMA1	Surface Mount	N-Channel	AEC-Q100	Over Current Over Voltage Short Circuit UVLO	Automotive	18 V	6 V	3 A	Non-Inverting	22.5 mOhm	150 °C	-40 °C	General Purpose	3.9 mm	24-TSSOP Exposed Pad	0.154 in	4		1:2	PG-TSDSO-24	SPI	High Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:2 N-Channel 3A PG-TSDSO-24
