9412 060500

Active

Belden Inc.

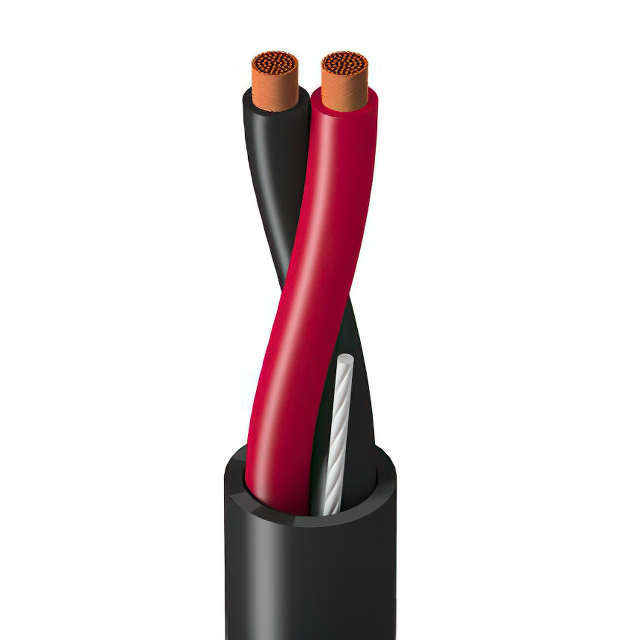

CABLE 2COND 12AWG CHROMEE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 12AWG CHROMEE

Technical Specifications

Parameters and characteristics for this part

Specification	9412 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.37 in
Jacket (Insulation) Diameter [diameter]	9.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Usage	Instrumentation
Voltage	300 V
Wire Gauge	12 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Usage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Length [x]	Length [x]	Cable Type	Voltage	Conductor Insulation	Jacket Color
Belden Inc. 9412 060500	1.067 mm	0.042 in	Poly-Vinyl Chloride (PVC)	Instrumentation	2	30 AWG	65	Rip Cord	0.37 in	9.4 mm	Copper Tinned	12 AWG	-30 ░C	105 ░C	UL Style 2464	500 '	152.4 m	Multi-Conductor	300 V	Poly-Vinyl Chloride (PVC)	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Chrome 12 AWG 500.0' (152.4m)
