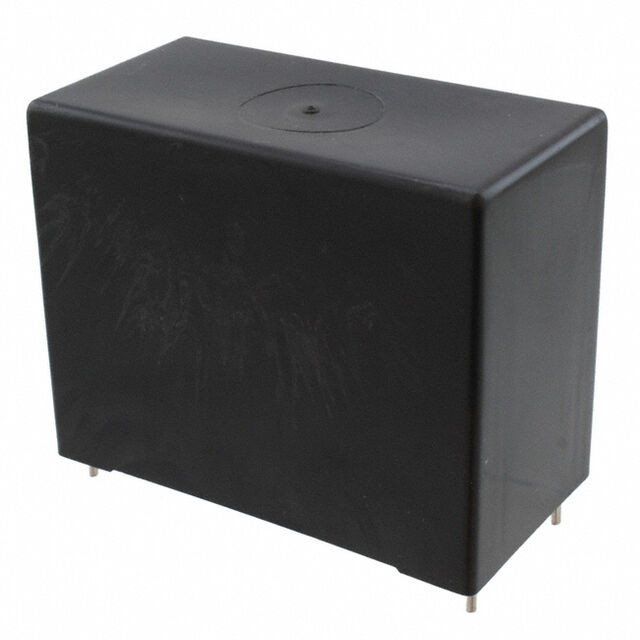

Specification	BLC300J901B4E

Applications	DC Filtering, DC Link
Capacitance	30 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.3 mOhm
Height - Seated (Max)	1.772 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-45 °C
Package Leads	4 Leads
Package Name	Radial
Size / Dimension Length	2.264 in
Size / Dimension Width	1.181 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	230 V
Voltage Rating - DC	900 V
