8315 0601000

Active

Belden Inc.

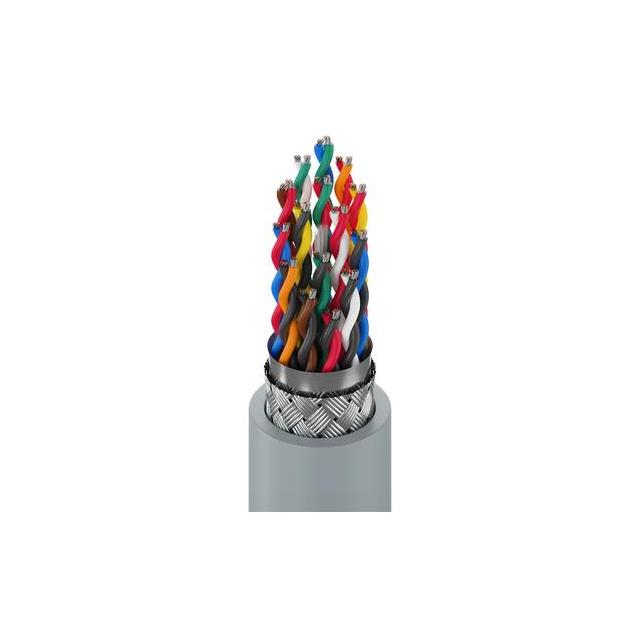

MULTI-PAIR 30COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 30COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8315 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	12.75 mm
Jacket (Insulation) Diameter [diameter]	0.502 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	30 (15 Pair Twisted)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket (Insulation) Material	Shield Coverage	Usage	Wire Gauge	Number of Conductors	Cable Type	Jacket Color	Shield Material	Conductor Material	Length [x]	Length [x]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
Belden Inc. 8315 060100	-30 ░C	80 C	12.75 mm	0.502 in	300 V	Poly-Vinyl Chloride (PVC)	65 % 100 %	Computer	22 AWG	30 (15 Pair Twisted)	Multi-Pair	Chrome	Aluminum Copper Tinned	Copper Tinned	30.5 m	100 ft	UL Style 2464	7	30 AWG	Braid Foil	Poly-Vinyl Chloride (PVC)	0.04 in	1.016 mm
Belden Inc. 8315 0601000	-30 ░C	80 C	12.75 mm	0.502 in	300 V	Poly-Vinyl Chloride (PVC)	65 % 100 %	Computer	22 AWG	30 (15 Pair Twisted)	Multi-Pair	Chrome	Aluminum Copper Tinned	Copper Tinned			UL Style 2464	7	30 AWG	Braid Foil	Poly-Vinyl Chloride (PVC)	0.04 in	1.016 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 15.58

General part information

30 (15 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil, Braid 1000.0' (304.8m)
