ZL40295LDG6
ActiveLOW JITTER, LOW POWER, 20 OUTPUT, PCIE BUFFER
Deep-Dive with AI
Search across all available documentation for this part.
ZL40295LDG6
ActiveLOW JITTER, LOW POWER, 20 OUTPUT, PCIE BUFFER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZL40295LDG6 |
|---|---|
| Differential - Input:Output [custom] | True |
| Differential - Input:Output [custom] | True |
| Frequency - Max [Max] | 250 MHz |
| Input | Differential or Single-Ended |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCSL |

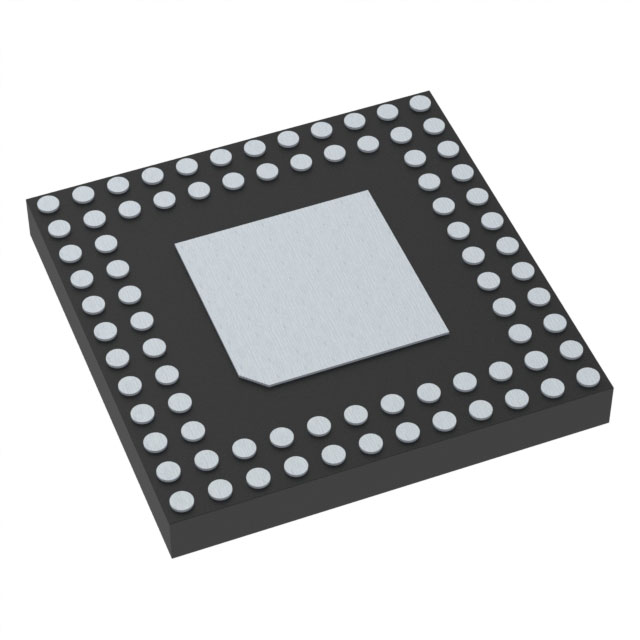

| Package / Case | 80-WFQFN Dual Rows, Exposed Pad |
| Ratio - Input:Output [custom] | 1:20 |
| Supplier Device Package | 80-GQFN (6x6) |
| Type | Fanout Buffer (Distribution) |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 490 | $ 5.00 | |
| Microchip Direct | TRAY | 1 | $ 6.21 | |
| 25 | $ 5.18 | |||
| 100 | $ 4.71 | |||
| 1000 | $ 4.55 | |||
| 5000 | $ 4.49 | |||
ZL40295 Series
Low Jitter, Low Power, 20 Output, PCIe Buffer
| Part | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Frequency - Max [Max] | Input | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Circuits | Output | Type | Supplier Device Package | Package / Case | Ratio - Input:Output [custom] | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL40295LDG6 | 250 MHz | Differential or Single-Ended | Surface Mount | 85 °C | -40 °C | 1 | HCSL | Fanout Buffer (Distribution) | 80-GQFN (6x6) | 80-WFQFN Dual Rows, Exposed Pad | 1:20 | 3.465 V | 3.135 V |
Description
General part information
ZL40295 Series
The ZL40295 is part of a family of high-performance, ultra-low jitter, low power 1 to 20 HCSL fanout buffers. The ZL40295 can be used in PCIe Gen 1 through 5 applications requiring a 100 ohm termination and comes in a 6x6 mm 80pin GQFN. Applications include PCI Express generation 1/2/3/4/5 clock distribution , Intel QPI Servers , Storage and Data Centers, Switches and Routers
