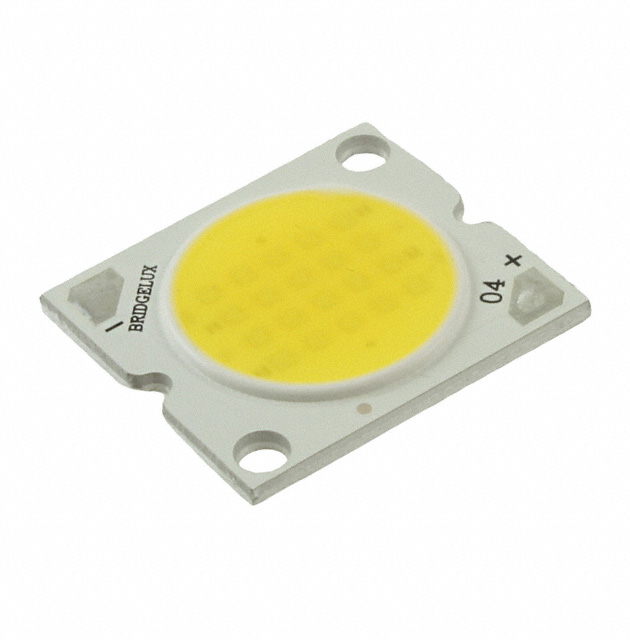

BXRA-50C1600-B-00

Obsolete

BRIDGELUX

LED COB ES COOL WHT RECT 5000K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB ES COOL WHT RECT 5000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRA-50C1600-B-00	BXRA-50 Series

CCT (K)	5000 K	5000 K
Color	Cool, White	Cool, White
Configuration	Rectangle	Rectangle, Starboard, Square
CRI (Color Rendering Index)	70	70
Current - Max [Max]	750 mA	3.5 - 750 mA
Current - Test	500 mA	2.8 - 500 mA
Height [z]	3 mm	3 mm
Lens Type	Domed	Domed, Flat
Lumens/Watt @ Current - Test	130 lm/W	105 - 130 lm/W
Luminous Flux @ Current/Temperature	1920 lm	1000 - 10060 lm
Size / Dimension	-	20.2 mm
Size / Dimension [x]	22.8 mm	22.8 - 45.6 mm
Size / Dimension [y]	25.8 mm	2 - 25.8 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	-	27.3 - 37 V

LED COB ES COOL WHT RECT 5000K

Part	Lens Type	Viewing Angle	Luminous Flux @ Current/Temperature	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Color	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Configuration	CRI (Color Rendering Index)	Current - Test	Temperature - Test	Size / Dimension [diameter]
BRIDGELUX BXRA-50C2600-B-00	Domed	120 °	3100 lm	5000 K	750 mA	37 V	120 lm/W	Cool, White	3 mm	25.8 mm	22.8 mm	Chip On Board (COB)	Rectangle	70
BRIDGELUX BXRA-50C1100-B-00	Domed	120 °	1320 lm	5000 K	750 mA		128 lm/W	Cool, White	3 mm	25.8 mm	22.8 mm	Chip On Board (COB)	Rectangle	70	500 mA
BRIDGELUX BXRA-50C1000-A-04	Flat	120 °	1000 lm		350 mA	27.3 V	105 lm/W	Cool, White	3 mm			Chip On Board (COB)	Starboard	70	350 mA	85 °C	20.2 mm
BRIDGELUX BXRA-50C1600-B-00	Domed	120 °	1920 lm	5000 K	750 mA		130 lm/W	Cool, White	3 mm	25.8 mm	22.8 mm	Chip On Board (COB)	Rectangle	70	500 mA
BRIDGELUX BXRA-50C1600-B-04	Domed	120 °	1920 lm	5000 K	750 mA		130 lm/W	Cool, White	3 mm	25.8 mm	22.8 mm	Chip On Board (COB)	Rectangle	70	500 mA
BRIDGELUX BXRA-50C9000-J-00	Domed	120 °	10060 lm	5000 K	3.5 A		122 lm/W	Cool, White	3 mm	2 in	45.6 mm	Chip On Board (COB)	Square	70	2.8 A
BRIDGELUX BXRA-50C9000-J-04	Domed	120 °	10060 lm	5000 K	3.5 A		122 lm/W	Cool, White	3 mm	2 in	45.6 mm	Chip On Board (COB)	Square	70	2.8 A
BRIDGELUX BXRA-50C1100-B-04	Domed	120 °	1320 lm	5000 K	750 mA		128 lm/W	Cool, White	3 mm	25.8 mm	22.8 mm	Chip On Board (COB)	Rectangle	70	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) ES White, Cool Rectangle
