9439 060U500 - 9439 060U500

9439 060U500

Active
Belden Inc.

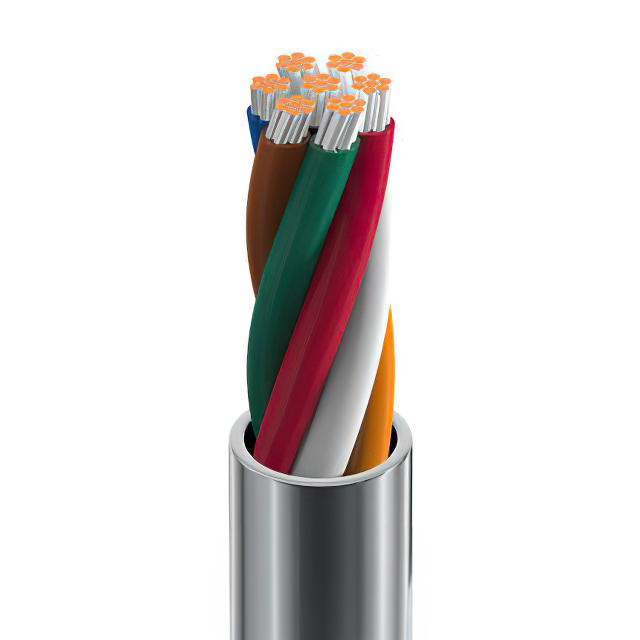

CABLE 7COND 20AWG CHROME

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial ApplicationsDatasheet
9439 060U500 - 9439 060U500

9439 060U500

Active
Belden Inc.

CABLE 7COND 20AWG CHROME

Deep-Dive with AI

DocumentsCabling Solutions for Industrial ApplicationsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification9439 060U500
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]28
Conductor Strand [custom]7
Jacket (Insulation) Diameter [diameter]6.6 mm
Jacket (Insulation) Diameter [diameter]0.26 in
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket ColorChrome
Length [x]500 '
Length [x]152.4 m
Number of Conductors7
Operating Temperature [Max]80 C
Operating Temperature [Min]-20 C
RatingsUL Style 2464
UsageAudio, Instrumentation, Control
Wire Gauge20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 500$ 3.16
1000$ 3.00
1500$ 2.91
2500$ 2.80
3500$ 2.75

Description

General part information

9439 Series

7 Conductor Multi-Conductor Cable Chrome 20 AWG 500.0' (152.4m)
