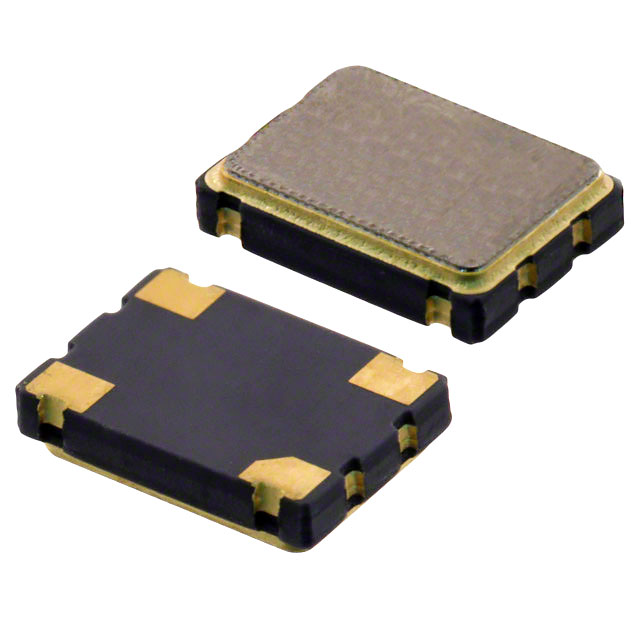

ASV2-25.000MHZ-C-L1-T
ActiveAbracon LLC
XTAL OSC XO 25.0000MHZ HCMOS SMD
ASV2-25.000MHZ-C-L1-T
ActiveAbracon LLC
XTAL OSC XO 25.0000MHZ HCMOS SMD
Description
General part information
ASV2-25.000MHZ-C-L1-T
25 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASV2-25.000MHZ-C-L1-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 20 mA |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
