M3URK-6006R
Active3M
IDC CABLE - MKS60K/MC60M/MPR60K
Deep-Dive with AI
Search across all available documentation for this part.
M3URK-6006R
Active3M
IDC CABLE - MKS60K/MC60M/MPR60K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3URK-6006R | M3URK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | 152.4 mm | 1.52 - 508 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.5 - 3.34 ft |
| Length | - | 1.02 - 914.4 mm |
| Length | - | 1.67 - 5 ft |
| Number of Positions | 60 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3URK Series
IDC CABLE - MKS20K/MC20M/MPR20K
| Part | Pitch - Cable | Pitch - Cable | Number of Positions | Length | Length | Length | Number of Rows | Connector Type | Shielding | Color | Pitch - Connector | Pitch - Connector | Features | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Length [x] | Length [x] | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.05 " | 1.27 mm | 20 | 152.4 mm | 6 " | 0.5 ' | 2 | Socket to Plug | Unshielded | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | |||||
0.05 " | 1.27 mm | 60 | 2 | Socket to Plug | Unshielded | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 3 ft | 914.4 mm | ||||||
0.05 " | 1.27 mm | 34 | 2 | Socket to Plug | Unshielded | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 3.34 ft | 1.02 m | ||||||
0.05 " | 1.27 mm | 40 | 2 | Socket to Plug | Unshielded | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 3 ft | 914.4 mm | ||||||
0.05 " | 1.27 mm | 10 | 508 mm | 2 | Socket to Plug | Unshielded | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 1.67 ft | ||||||
0.05 " | 1.27 mm | 26 | 152.4 mm | 6 " | 0.5 ' | 2 | Socket to Plug | Unshielded | Multiple, Ribbon | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | |||||
0.05 " | 1.27 mm | 50 | 508 mm | 2 | Socket to Plug | Unshielded | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 1.67 ft | ||||||
0.05 " | 1.27 mm | 2 | Socket to Plug | Unshielded | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 3.34 ft | 1.02 m | 16 | ||||||
0.05 " | 1.27 mm | 10 | 2 | Socket to Plug | Unshielded | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 3.34 ft | 1.02 m | ||||||
0.05 " | 1.27 mm | 10 | 1.52 m | 2 | Socket to Plug | Unshielded | Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | Polarizing Key, Strain Relief | IDC | 0.76 Ám | 30 Áin | Gold | 5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.42 | |
| 10 | $ 35.15 | |||
| 25 | $ 31.89 | |||
| 50 | $ 29.69 | |||
| 100 | $ 27.69 | |||
| 250 | $ 25.35 | |||
Description
General part information
M3URK Series

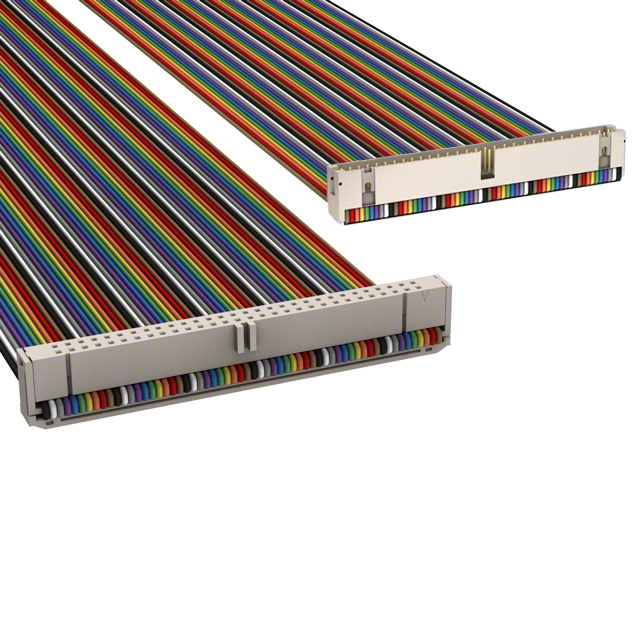

60 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
