1106449-1
ActiveTE Connectivity AMP Connectors

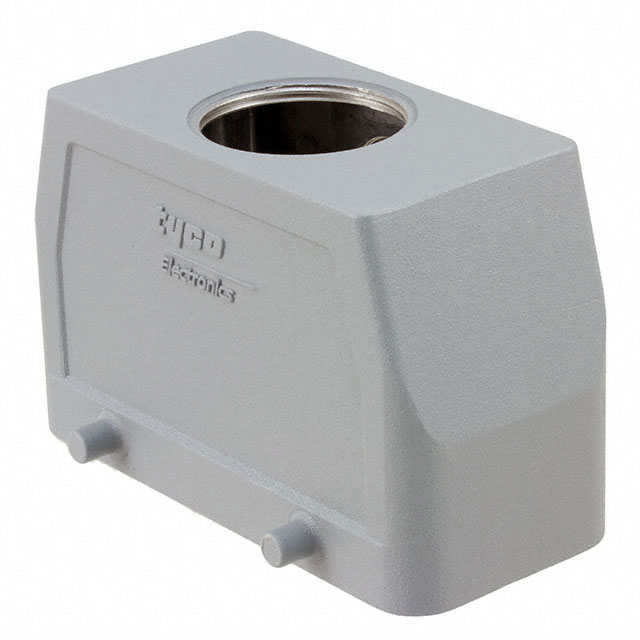

CONN HOOD TOP ENTRY SZ6 M32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106449-1
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ6 M32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106449-1 | 1106449 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum | Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom, Locking Clip (1) on Base Bottom |
| Size | 6 | 6 |
| Size / Dimension [x] | 93.5 mm | 93.5 mm |
| Size / Dimension [x] | 3.681 " | 3.681 " |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 60 mm | 60 mm |
| Size / Dimension [z] | 2.362 " | 2.362 " |
| Style | Top Entry | Top Entry, Side Entry |
| Thread Size | M32 | M32, M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 37.89 | |
1106449 Series
CONN HOOD TOP ENTRY SZ6 M32
| Part | Housing Color | Housing Finish | Housing Material | Size | Thread Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Style | Connector Type | Lock Location | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106449-1 | Gray | Powder Coated | Aluminum | 6 | M32 | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Top Entry | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight, Water Resistant |
TE Connectivity AMP Connectors 2-1106449-5 | Gray | Powder Coated | Aluminum | 6 | M25 | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Side Entry | Hood | Locking Clip (2) on Base Bottom | IP65 - Dust Tight, Water Resistant |
TE Connectivity AMP Connectors 3-1106449-4 | Gray | Powder Coated | Aluminum | 6 | M25 | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Side Entry | Hood | Locking Clip (1) on Base Bottom | IP65 - Dust Tight, Water Resistant |
Description
General part information
1106449 Series
Hood Connector Top Entry M32 6 IP65 - Dust Tight, Water Resistant
