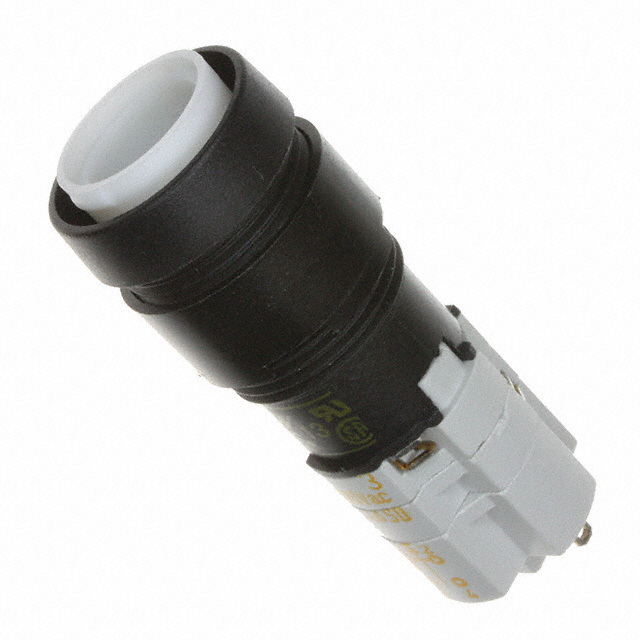

1.15.108.451/0000

Active

RAFI USA

SWITCH PUSH DPST 4A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.82
		10	$ 24.86
		25	$ 23.44
		50	$ 22.42
		100	$ 21.44
		250	$ 20.20
		500	$ 19.31

Description

General part information

1.15108 Series

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15.108.451/0000	1.15108 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Rectangular, Button, Flat Key, Square
Angle of Throw	-	45 - 90 °
Circuit	DPST-NO/NC	DPST-NO/NC, 4PST-2NO/2NC
Contact Material	-	Silver (Ag)
Contact Timing	-	Not Specified
Current Rating (Amps)	4 A, 200 mA	4 - 200 A
Electrical Life	-	50000 Cycles
Features	-	IP40
Ingress Protection	IP40	IP65 - Dust Tight, Water Resistant, IP40
Key Removable Positions	-	Center, All
Mounting Type	Panel Mount, Front	Panel Mount, Front
Number of Positions	-	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom, On-Off, Off-On
Termination Style	Solder Lug	Solder Lug
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	230 V	230 V

1.15108 Series

SWITCH PUSH DPST 4A 250V

Part	Voltage Rating - AC	Type	Actuator Marking	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Mounting Type	Ingress Protection	Voltage Rating - DC	Switch Function	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Angle of Throw	Contact Timing	Number of Positions	Features	Key Removable Positions	Contact Material
RAFI USA 1.15.108.476/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-Mom, On-Mom	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.977/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles
RAFI USA 1.15.108.452/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP40	230 V	Off-Mom, On-Mom	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.552/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP40	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.176/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Rectangular, Button	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles
RAFI USA 1.15.108.152/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Rectangular, Button	16.2 mm	Panel Mount, Front	IP40	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.661/0100	250 V			Solder Lug	Flat Key	16.2 mm			230 V	Off-Mom, On-Mom	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C		90 °	Not Specified	2	IP40	Center	Silver (Ag)
RAFI USA 1.15.108.941/0000	250 V			Solder Lug	Flat Key	16.2 mm			230 V	Off-Mom, On-Mom	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles	45 °	Not Specified	2	IP40	Center	Silver (Ag)
RAFI USA 1.15.108.377/0000	250 V	Illuminated, Standard	No Marking	Solder Lug		16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.177/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Rectangular, Button	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles
